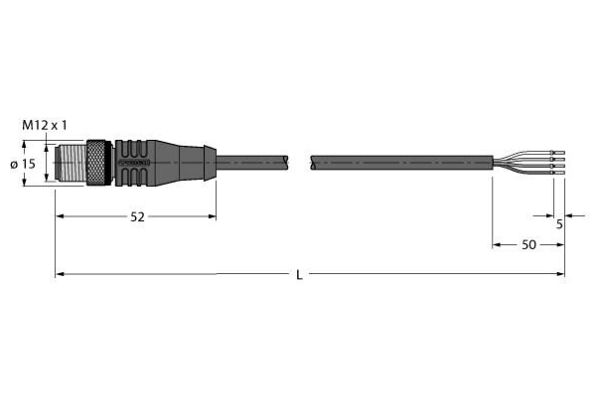

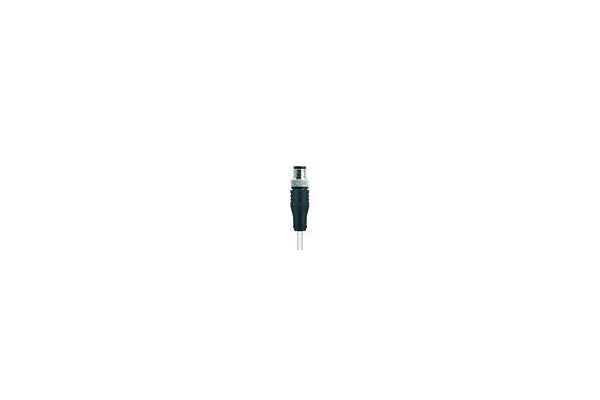

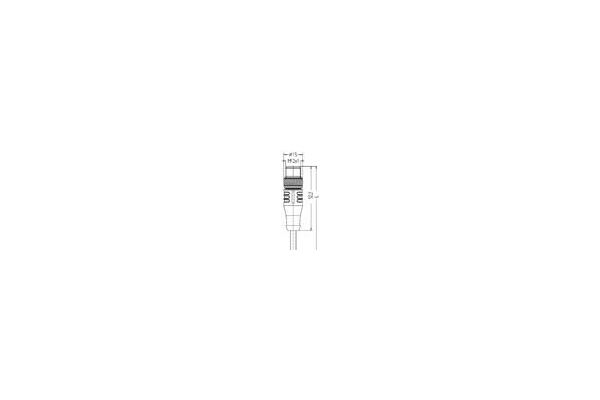

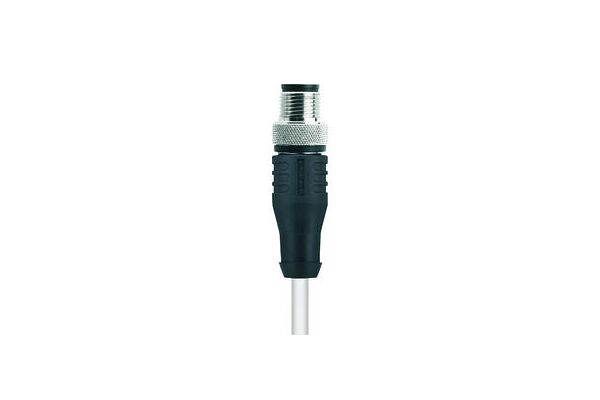

HT-WAS4-5/S2430 High-Temperature Resistant Actuator and Sensor Cable, Connection Cable

HT-WAS4-5/S2430

High-Temperature Resistant Actuator and Sensor Cable, Connection Cable, Voltage 250 V, Cable length 5 m, M12 male connector, straight, 4-pin, Sheath material: PTFE, Sheath color: white, Flame-retardant, Resistant to welding sparks, Resistant to chemicals, UV radiation and oils, Resistant to acids and alkaline solutions, LABS free, Resistant to microbes and hydrolysis, Cold and heat-flexible, RoHS-compliant, Protection class IP65, Temperature range of the cable: -190°C…260°C, Cable length: 5.0 m

  • SKU
    4047106005177
  • Manufacturer code
    8036092

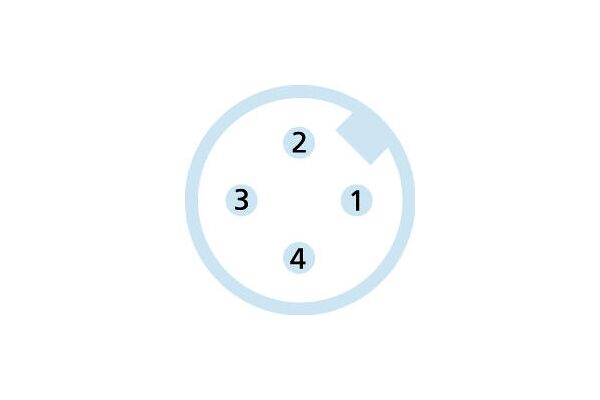

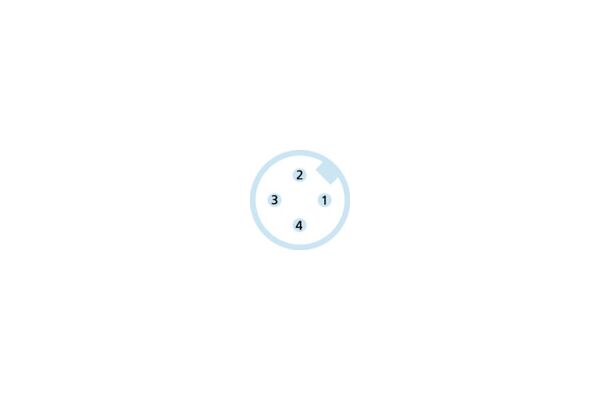

  • Number of poles
    4
  • Jacket color
    White
  • Material contact body
    CuZn
  • Permitted cable outer temperature after assembling without vibration
    -20 - 150 °C
  • Rated current In
    4 A
  • Rated voltage
    250 V
  • Gender, box-sided
    Male (plug)
  • Positioning, box-sided
    Straight
  • Screened
    false
  • Jacket material
    Other
  • With LED indication
    false
  • Type of electric connection, box-sided
    M12
  • Material of contact surface
    Gold
  • Connector gender
    male
  • Cable length (m)
    5 m
  • Cable length (m)
    5
  • Manufacturer Turck

Product attachments
