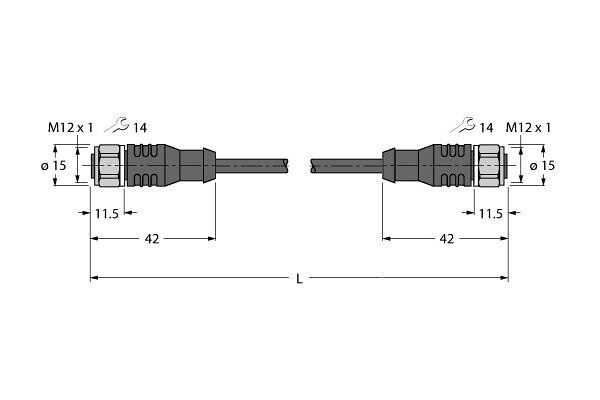

RKCV5T-20-RKCV5T/TFW Actuator And Sensor Cable, PP-EPDM, Extension Cable

RKCV5T-20-RKCV5T/TFW

Actuator And Sensor Cable, PP-EPDM, Extension Cable, Voltage 60 V, Cable length 20 m, M12 female connector, straight, 4-pin + PE, Stainless steel coupling nut/screw, M12 female connector, straight, 4-pin + PE, Sheath material: PP-EPDM, Sheath color: white, Resistant to acids and alkaline solutions, Resistant to detergents and disinfectants, Resistant to hydrolysis acc. to DIN EN 60068-2-78, Free from silicone and PVC, Halogen-free acc. to DIN EN 50267-2-1, IEC 60754-1, VDE 0482-267-2-1, Approvals: Ecolab, FDA, RoHS and REACH compliant, Protection classes IP67, IP69K, Cable length: 20 m

  • SKU
    4047101381566
  • Manufacturer code
    6934990
  • Number of poles
    5
  • Jacket color
    White
  • Material contact body
    CuZn
  • Permitted cable outer temperature after assembling without vibration
    -40 - 105 °C
  • Rated current In
    4 A
  • Rated voltage
    60 V
  • Positioning, field-sided
    Straight
  • Gender, box-sided
    Female (bus)
  • Positioning, box-sided
    Straight
  • Permitted cable outer temperature during assembling/handling
    0 - 80 °C
  • Screened
    false
  • Jacket material
    Other
  • With LED indication
    false
  • Gender, field sided
    Female (bus)
  • Type of electric connection, box-sided
    M12
  • Material of contact surface
    Gold
  • Type of electric connection, field-sided
    M12
  • Connector gender
    female - female
  • Cable length
    20 m
  • Approvals / Compliance
    Ecolab
    FDA
    RoHS
    REACH
  • Cable length (m)
    20
  • Manufacturer Turck

Product attachments

file-38609-7aa2a92b62906b1acef1aec99c64babe.pdf (PDF, 233.38 kB)
