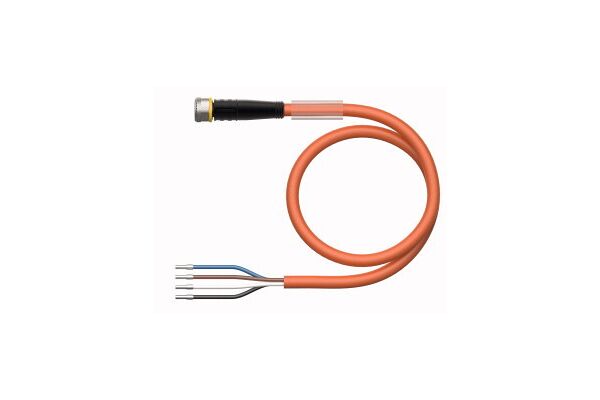

Actuator and Sensor Cable, PUR, Connection Cable, Rated voltage [Umax] 60 VDC / 50 VAC, Cable length 1 m, Female M8, straight, 4-pin, Jacket material: PUR, Jacket color: orange, Suitable for drag chain use, Resistant to chemicals, UV radiation and oils, Flame retardant (FT2 acc. to UL 1581, IEC 60332-2-2), Resistant to welding sparks, Free from halogen, silicone, PVC and LABS, Particularly resistant to abrasion, Protection class: IP67, IP69K, Cable length: 1.0 m

SKU

4047101346664
Manufacturer code

6629262
Number of poles

4
Jacket color

Orange
Material contact body

CuZn
Permitted cable outer temperature after assembling without vibration

-50 - 80 °C
Rated current In

4 A
Gender, box-sided

Female (bus)
Positioning, box-sided

Straight
Permitted cable outer temperature during assembling/handling

-25 - 80 °C
Screened

false
Jacket material

Polyurethane (PUR)
With LED indication

false
Type of electric connection, box-sided

M8
Material of contact surface

Gold
Jacket material

PUR
Jacket color

orange
Connector gender

female
Cable length

1 m
Cable length (m)

1

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Turck
