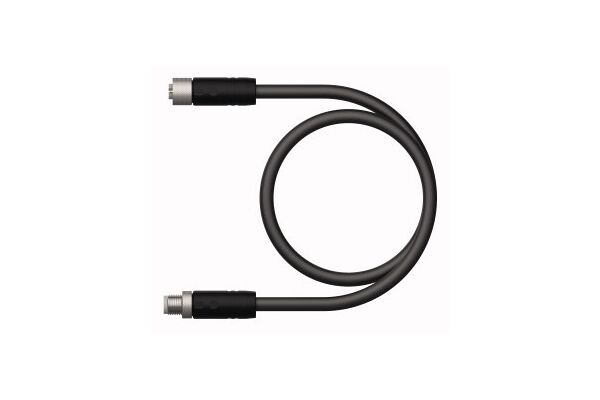

Supply Cable — M12 Power, Extension Cable, Rated voltage [Umax] 60 VDC / 50 VAC, Cable length 10 m, M12 female connector, T-coded, straight, 4-pin, Shield on coupling nut, M12 male connector, T-coded, straight, 4-pin, Jacket material: PUR, Jacket color: black, Highly resistant to oils, coolants, lubricants and emulsions, Suitable for use in drag chains, Resistant to vibrations and shocks, Flame retardant, Halogen-free, RoHS compliant, UL approval, Protection class: IP65, IP67, IP69K, Cable length: 10 m

SKU

4047101532500
Manufacturer code

100024017
Rated current In

16 A
Contact type

Bus
Positioning

Straight
Ambient temperature

-40 - 80 °C
Pollution degree

3
Material of contact surface

Gold
Housing material

Plastic
Jacket material

PUR
Jacket color

black
Connector orientation

straight - straight
Coding

T-coded
Cable length (m)

10

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Turck
