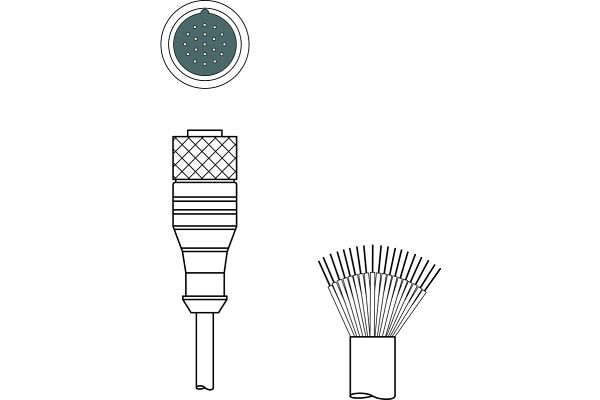

A connection cable featuring an M23, axial, female, A-coded, 19-pin connector on one end and an open end on the other. It is unshielded and has a 20,000 mm PUR sheathing.

SKU

2110-50136637
Manufacturer code

50136637
Number of poles

19
Type of electrical connection, field-sided

Free conductor end
Positioning cable feed, field-sided

Other
Type of electrical connection, box-sided

Other
Type of plug-in contact, box-sided

Female (bus)
Positioning cable feed, box-sided

Other
Cable length

20 m
Material of cable sheath

Polyurethane (PUR)
Halogen free

true
Colour cable sheath

Black
With LED indication

false
Screened

false
Cable type

Multi-core
Vulcanize

false
Material contact body

Other
Material of contact surface

Other
Permitted cable outer temperature after assembling without vibration

-50 - 80 °C
Degree of protection (IP)

IP65
Permitted cable outer temperature during assembling/handling

-25 - 80 °C
Connection 1

M23, 19 -pin
Connection 2

Open end
Shielded

No
Sheathing material

PUR
Connector orientation

Axial
Coding

C1: A-coded
Cable length (m)

20
Connector type

female

Manufacturer Leuze
