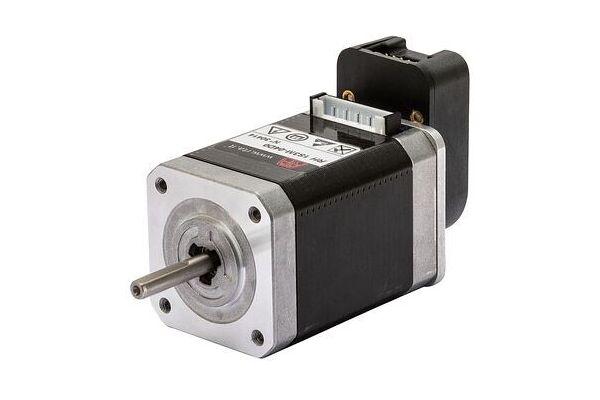

Industrial Stepping Motor ; Flange size: 42 mm ; Length: 59,5 mm ; Holding Torque: 80 Ncm (bipolar) ; Current: 2,3 A (bipolar) ; Weight: 0,51 kg ; Compatible controllers R.T.A: BSD, CSD, NDC, FLEX DRIVE ; Cable: CVMRH1S02M, CVMRH1S0M3 (motor con. JST PH- 11 pole M) ; Options: Planet Gearbox

Manufacturer code

RH1S3H
Flange size (mm)

42
Holding torque (Ncm)

80
Current (A)

2.3
Apropriate cable or connector

CVMRH1S02M, CVMRH1S0M3 (motor con. JST PH- 11 pole M)

Manufacturer RTA
