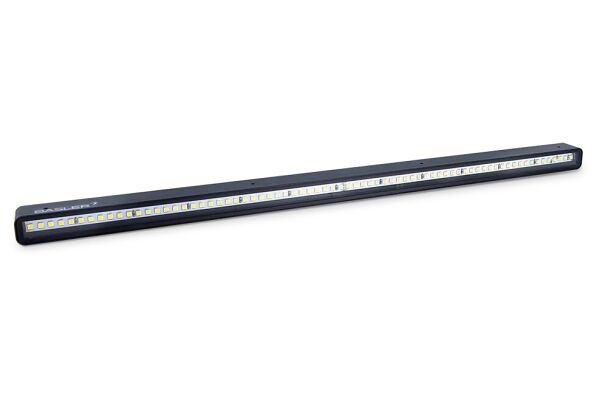

Basler Standard Light Bar-10x165-IR Lighting

Basler Standard Light Bar-10x165-IR
Basler Standard Light as versatile narrow Bar Light for direct, dark field or simple line applications.Basler Standard Lights are suitable for industry application, enabling a worry-free and fast integration while providing a long-term repeatable image quality for your vision system. Every Basler Standard Light works optimally in combination with a Basler Lighting Controller (e.g. Basler SLP Controller) or in operation without an external controller in continuous as well as triggered light.
  • SKU
    8500-2200000873
  • Manufacturer code
    2200000873
  • Type
    Basler Light
  • LED Color
    Infrared (IR)
  • Light-Emitting surface
    10 mm x 165 mm
  • Maximum object size
    620 mm x 520 mm
  • Operating Temperature - operating_temperature_min_max
    0 °C - 30 °C
  • Peak Wavelength (typical)
    850 nm
  • Power consumption
    5 W / 300 mA (voltage- / current controlled)
  • Protection Class
    IP54
  • Pulse width
    100 µs - ∞ ms
  • Recommended light working distance
    100 mm - 1000 mm
  • Manufacturer Basler
