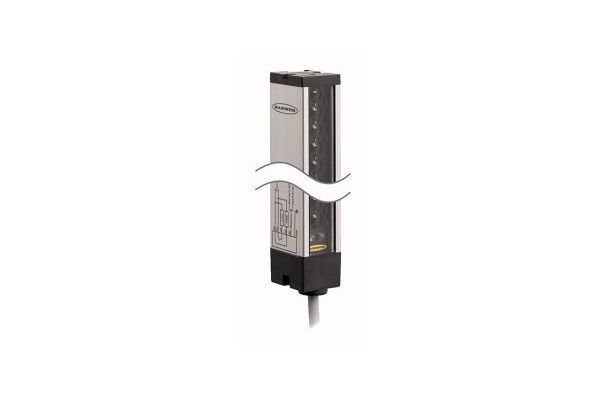

LX24E Photoelectric Sensor, Switching Light Screen, Emitter

LX24E

Photoelectric Sensor, Switching Light Screen, Emitter, Operating voltage 10…30 VDC, Max. range 2000 mm, Cable length 2 m, Cable, 2 m, 5-wire, Protection class IP65, Scan field 599 mm, Minimum target size 9.5 mm, Operating voltage: 10 … 30 VDC, Programmable connection for reduced sensing range, 2 slot nuts including M5 screws for wall mounting included in the scope of delivery

  • SKU
    0662488718015
  • Manufacturer code
    3071801
  • Type of electric connection
    Cable
  • Ambient temperature
    -20 - 70 °C
  • Wavelength of the sensor
    880 nm
  • Response time
    6.4 s

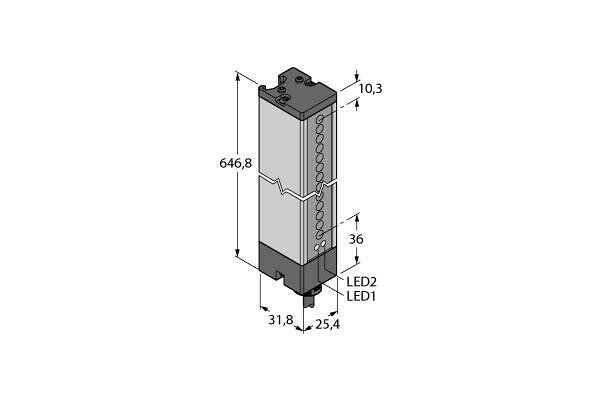

  • Width sensor
    25.4 mm
  • Height of sensor
    646.8 mm
  • Length of sensor
    31.8 mm
  • Resolution of the light curtain
    9.5 mm
  • Height, Protection field
    599 mm
  • Suitable for safety functions
    false
  • Cable length (m)
    2

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-39503-4111375fc62f0723f73ca024f55ceb07.pdf (PDF, 860.2 kB)
