Multiple light beam safety device receiver with connection socket for external muting indicator.

SKU

2110-66533702
Manufacturer code

66533702
Number of contact energized outputs with signalling function

0
Number of protected contact energized outputs

0
Number of beams

4
4
4
4
Model

Transmitter and receiver separated
Type of electric connection

Connector M12
Detection capability for test bodies

300 mm
Scope of delivery of the one-way system

Receiver
Voltage type

DC
Beam spacing

300 mm
Cascadable

false
With muting function

false
With beam coding

true
With monitoring function downstream switching devices

false
With restart blockage

false
Override possible

false
Pre failure notice

false
Condition analysis system

false
Explosion safety category for gas

None
Explosion safety category for dust

None
Type of safety according to IEC 61496-1

4
Ambient temperature

-30 - 55 °C
Width

52 mm
Height

1000 mm
Length

64.7 m
Operation agent-safety class

Safety class 3
Response time

30 s
Type of interface for safety communication

AS-Interface Safety at Work
Beam spacing (mm)

300
Special version

Connection socket for external muting indicator
Performance Level (PL)

e
ISO Standard

EN ISO 13849-1
EN ISO 13849
Most suitable applications

Safety applications requiring a Type 4 safety level Environments needing SIL 3 and Performance Level e protection
Category

4

Cart

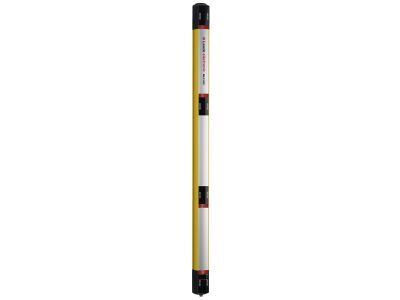

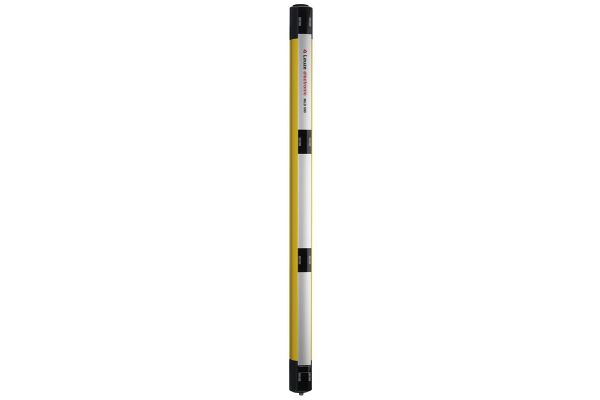

MLD510-XR4E/A Multiple light beam safety device receiver
