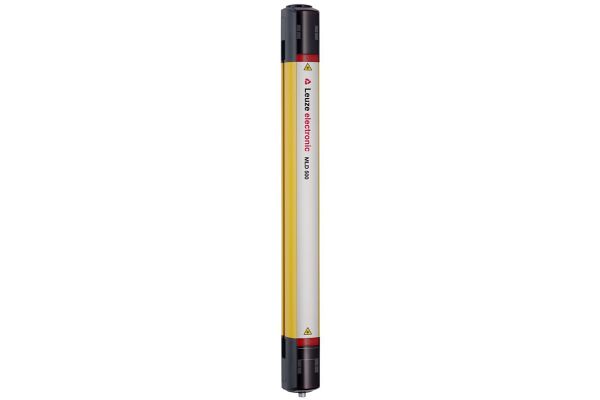

Multiple light beam safety device transmitter with integrated laser alignment aid.

SKU

2110-66502500
Manufacturer code

66502500
Number of contact energized outputs with signalling function

0
Number of protected contact energized outputs

0
Number of beams

2
2
2
2
Model

Transmitter and receiver separated
Type of electric connection

Connector M12
Detection capability for test bodies

500 mm
Scope of delivery of the one-way system

Transmitter
Transmission range of the safety field

70 m
Voltage type

DC
Beam spacing

500 mm
Cascadable

false
With muting function

false
With beam coding

true
With monitoring function downstream switching devices

false
With restart blockage

false
Override possible

false
Pre failure notice

false
Condition analysis system

false
Explosion safety category for gas

None
Explosion safety category for dust

None
Type of safety according to IEC 61496-1

4
Ambient temperature

-30 - 55 °C
Wavelength of the sensor

850 nm
Width

52 mm
Height

600 mm
Length

64.7 m
Operation agent-safety class

Safety class 3
Beam spacing (mm)

500
Special version

Integrated laser alignment aid
Most suitable applications

Safety applications requiring precise alignment Environments needing long operating range light beam devices
Operating range (m)

20 ... 70

Manufacturer Leuze
