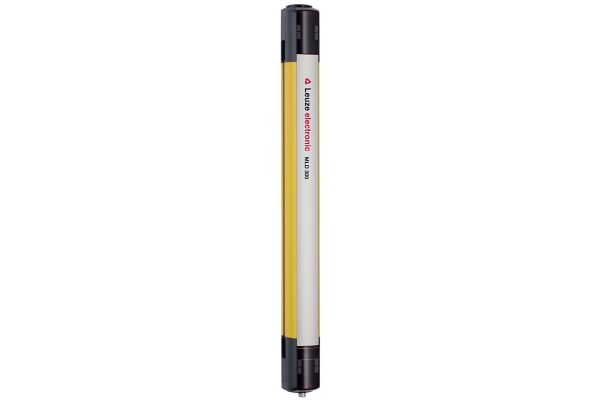

MLD300-T2 Multiple light beam safety device transmitter

MLD300-T2
A multi-beam safety device transmitter designed for secure and efficient operation.
  • SKU
    2110-66001100
  • Manufacturer code
    66001100
  • Number of contact energized outputs with signalling function
    0
  • Number of protected contact energized outputs
    0
  • Number of beams
    2
    2
    2
    2
  • Model
    Transmitter and receiver separated
  • Type of electric connection
    Connector M12
  • Detection capability for test bodies
    500 mm
  • Scope of delivery of the one-way system
    Transmitter
  • Transmission range of the safety field
    50 m
  • Voltage type
    DC
  • Beam spacing
    500 mm
  • Cascadable
    false
  • With muting function
    false
  • With beam coding
    true
  • With monitoring function downstream switching devices
    false
  • With restart blockage
    false
  • Override possible
    false
  • Pre failure notice
    false
  • Condition analysis system
    false
  • Explosion safety category for gas
    None
  • Explosion safety category for dust
    None
  • Type of safety according to IEC 61496-1
    2
  • Ambient temperature
    -30 - 55 °C
  • Wavelength of the sensor
    850 nm
  • Width
    52 mm
  • Height
    600 mm
  • Length
    64.7 m
  • Operation agent-safety class
    Safety class 3
  • Beam spacing (mm)
    500
  • Operating range (m)
    0.5 ... 50
  • Manufacturer Leuze

Product attachments

DS_MLD300-T2_eng_66001100 (LINK)
