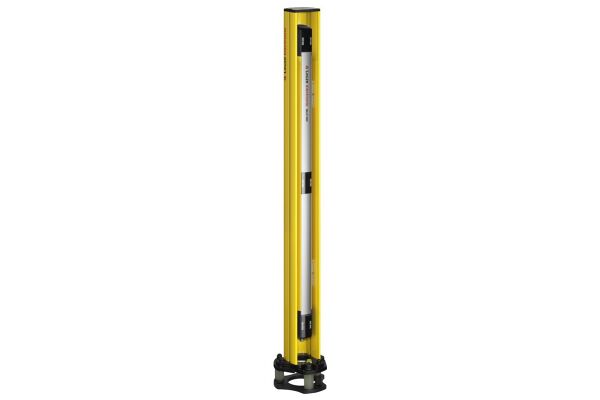

MLD500-XT3L-UDC-1140-S2 Safety sensor/transmitter set

MLD500-XT3L-UDC-1140-S2
Safety sensor/transmitter set with an integrated laser alignment aid.
  • SKU
    2110-426598
  • Manufacturer code
    426598
  • Number of contact energized outputs with signalling function
    0
  • Number of protected contact energized outputs
    0
  • Number of beams
    3
    3
    3
    3
  • Model
    Transmitter and receiver separated
  • Type of electric connection
    Connector M12
  • Detection capability for test bodies
    400 mm
  • Scope of delivery of the one-way system
    Transmitter
  • Transmission range of the safety field
    70 m
  • Voltage type
    DC
  • Beam spacing
    400 mm
  • Cascadable
    false
  • With muting function
    false
  • With beam coding
    true
  • With monitoring function downstream switching devices
    false
  • With restart blockage
    false
  • Override possible
    false
  • Pre failure notice
    false
  • Condition analysis system
    false
  • Explosion safety category for gas
    None
  • Explosion safety category for dust
    None
  • Type of safety according to IEC 61496-1
    4
  • Beam spacing (mm)
    400
  • Special version
    Integrated laser alignment aid
  • Operating range (m)
    20 ... 70
  • Manufacturer Leuze

Product attachments

DS_MLD500-XT3L-UDC-1140-S2_eng_426598 (LINK)
