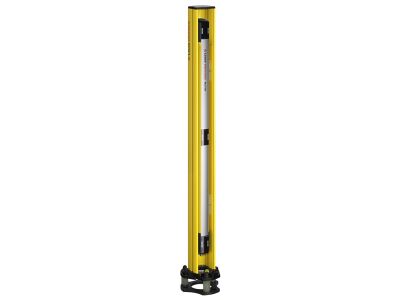

MLD510-RT3-UDC-1300-S2 Safety sensor/transceiver set

MLD510-RT3-UDC-1300-S2
Safety sensor/transceiver set with advanced safety features.
  • SKU
    2110-426446
  • Manufacturer code
    426446
  • Number of contact energized outputs with signalling function
    0
  • Number of protected contact energized outputs
    0
  • Number of beams
    3
    3
    3
    3
  • Model
    Transmitter and receiver in one housing
  • Type of electric connection
    Connector M12
  • Detection capability for test bodies
    400 mm
  • Scope of delivery of the one-way system
    Transmitter and receiver
  • Transmission range of the safety field
    6 m
  • Voltage type
    DC
  • Beam spacing
    400 mm
  • Cascadable
    false
  • With muting function
    false
  • With beam coding
    true
  • With monitoring function downstream switching devices
    false
  • With restart blockage
    false
  • Override possible
    false
  • Pre failure notice
    false
  • Condition analysis system
    false
  • Explosion safety category for gas
    None
  • Explosion safety category for dust
    None
  • Type of safety according to IEC 61496-1
    4
  • Beam spacing (mm)
    400
  • Performance Level (PL)
    e
  • ISO Standard
    EN ISO 13849-1
  • Operating range (m)
    0.5 ... 6
  • Manufacturer Leuze

Product attachments

DS_MLD510-RT3-UDC-1300-S2_eng_426446 (LINK)
