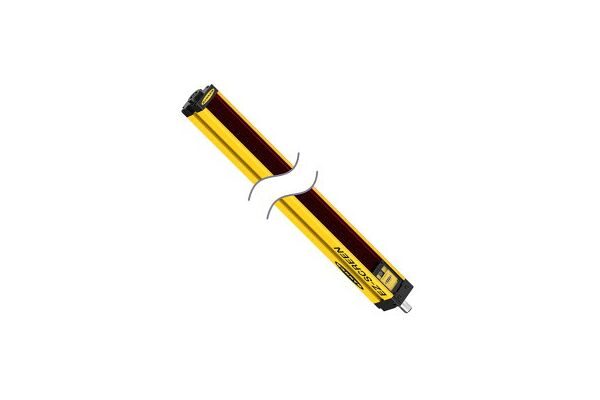

SLSE14-1500P8 Safety Light Curtain, Emitter

SLSE14-1500P8

Safety Light Curtain, Emitter, Operating voltage 20…28 VDC, Max. range 6000 mm, M12 × 1 male connector, 8-pin, Protection class IP65, Adjustments via DIP switch, Operating voltage 24 VDC ± 15 %, Resolution 14 mm, Scan field 1500 mm, All devices incl. two EZA-MBK-11 mounting brackets; devices with a length of 900 mm or more additionally incl. one EZA-MBK-12

  • SKU
    0662488738655
  • Manufacturer code
    3073865
  • Fade-out possible
    true
  • With muting function
    false
  • Resolution of the light curtain
    14 mm
  • Protective field height (mm)
    1500 mm
  • With restart blockage
    true
  • Suitable for safety functions
    true
  • Type of electric connection
    Connector M12
  • Height of sensor
    1569 mm
  • Ambient temperature
    0 - 50 °C
  • Wavelength of the sensor
    950 nm
  • Max. output current at protected output
    500 mA
  • Width sensor
    36 mm
  • Length of sensor
    45 mm
  • Response time
    27 s
  • Connector gender
    male

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-43690-322e61275f2a364f6b9cc65781c2f6b3.pdf (PDF, 569.84 kB)
