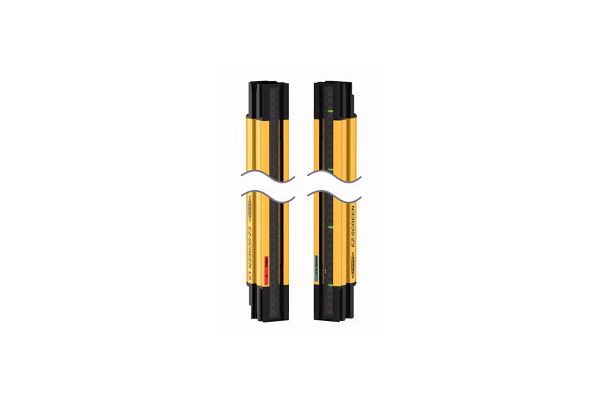

SLLVP23-1050 Safety Light Curtain, Emitter/Receiver Pair

SLLVP23-1050

Safety Light Curtain, Emitter/Receiver Pair, Operating voltage 20.4…27.6 VDC, Max. range 12000 mm, Rugged housing, Protection class IP67, Diagnosis display for status and error indication, Scan field L: 1050 mm, Optical alignment aid, No blind zone, Range: 0.1…8 m, Resolution: 23 mm, Operating voltage: 24 VDC, No restart interlock, Safety light curtain type 4 acc. to IEC 61496-1 and 61496-2, Category 4 Ple acc. to EN ISO 13849-1, SIL 3 acc. to IEC 61508 SIL 3 and CL3 acc. to IEC 62061, Shock and vibration resistant acc. to IEC 61496-1

  • SKU
    0662488029265
  • Manufacturer code
    3804079
  • Fade-out possible
    false
  • Type of switching output of the OSSD
    PNP
  • With muting function
    false
  • Resolution of the light curtain
    23 mm
  • Protective field height (mm)
    1050 mm
  • With restart blockage
    false
  • Suitable for safety functions
    true
  • Type of electric connection
    Flat plug-in connection
  • Height of sensor
    1055 mm
  • Ambient temperature
    -20 - 55 °C
  • Number of protected semiconductor outputs
    2
  • Max. output current at protected output
    500 mA

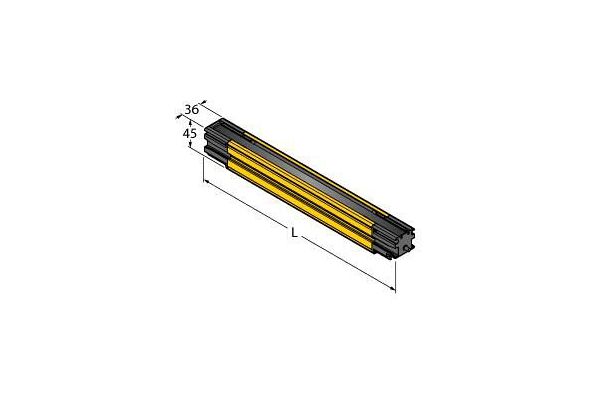

  • Width sensor
    36 mm
  • Length of sensor
    45 mm
  • Response time
    17.5 s
  • Approvals / Compliance
    SIL 3
    Ple
    CL3

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-38003-b0bb8b9bac962e746458ca422f75abd6.pdf (PDF, 818.26 kB)
