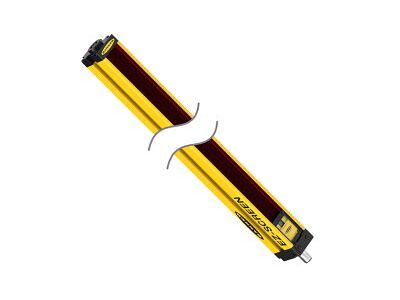

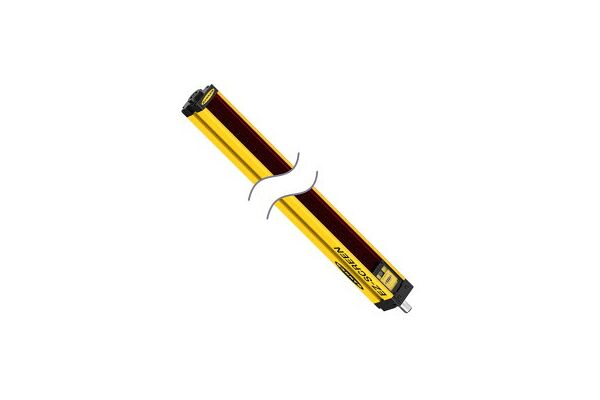

SLSE30-750Q5 Emitter

SLSE30-750Q5

Emitter, Operating voltage 20…28 VDC, Max. range 18000 mm, M12 × 1 male connector, 5-pin, Test function, Protection class IP65, Adjustments via DIP switch, Operating voltage 24 VDC ± 15 %, Resolution 30 mm, Scan field 750 mm, All devices incl. two EZA-MBK-11 mounting brackets; devices with a length of 900 mm or more additionally incl. one EZA-MBK-12, Personnel safety category 4, PL e acc. to EN ISO 13849‐1:2008, Type 4 acc. to IEC 61496‐1,‐2, SIL 3 to IEC 61508

  • SKU
    0662488712402
  • Manufacturer code
    3071240
  • Fade-out possible
    true
  • With muting function
    false
  • Resolution of the light curtain
    30 mm
  • Protective field height (mm)
    750 mm
  • With restart blockage
    true
  • Suitable for safety functions
    true
  • Type of electric connection
    Connector M12

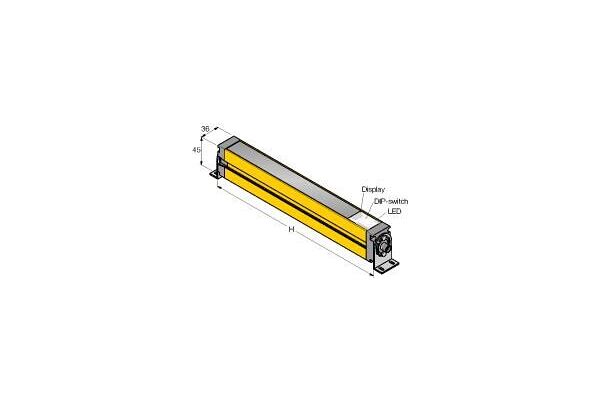

  • Height of sensor
    821 mm
  • Ambient temperature
    0 - 50 °C
  • Wavelength of the sensor
    950 nm
  • Width sensor
    36 mm
  • Length of sensor
    45 mm
  • Response time
    17 s
  • Approvals / Compliance
    SIL 3
  • Connector gender
    male

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-35588-2cb0f1b3f847d4c0a1a417bdffa475df.pdf (PDF, 570.61 kB)
