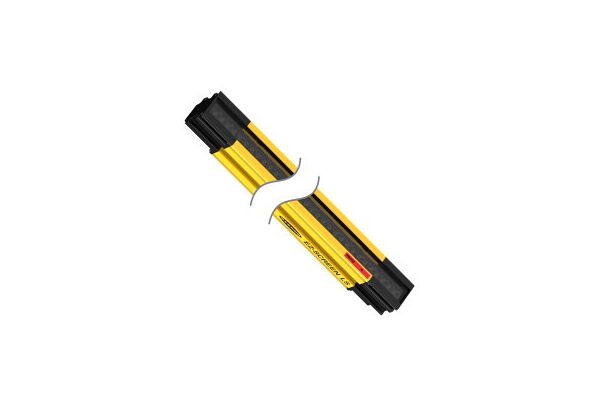

SLLR14-350P8 Safety Light Curtain, Receiver

SLLR14-350P8

Safety Light Curtain, Receiver, Operating voltage 20.4…27.6 VDC, Max. range 12000 mm, Cable length 0.3 m, Rugged housing, Protection class IP67, Diagnosis display for status and error indication, Scan field L: 350 mm, Optical Alignment aid, No blind zone, Range: 0.1…12 m, Resolution: 14 mm, Operating voltage: 24 VDC, No restart interlock, Safety light curtain type 4 acc. to IEC 61496-1 and 61496-2, Category 4 Ple acc. to EN ISO 13849-1, SIL 3 acc. to IEC 61508 SIL 3 and CL3 acc. to IEC 62061, Shock and vibration resistant acc. to IEC 61496-1

  • SKU
    0662488890001
  • Manufacturer code
    3089000
  • Fade-out possible
    true
  • Type of switching output of the OSSD
    PNP
  • With muting function
    false
  • Resolution of the light curtain
    14 mm
  • Protective field height (mm)
    350 mm
  • With restart blockage
    true
  • Suitable for safety functions
    true
  • Type of electric connection
    Connector M12
  • Height of sensor
    355 mm
  • Ambient temperature
    -20 - 55 °C
  • Number of protected semiconductor outputs
    2
  • Max. output current at protected output
    500 mA

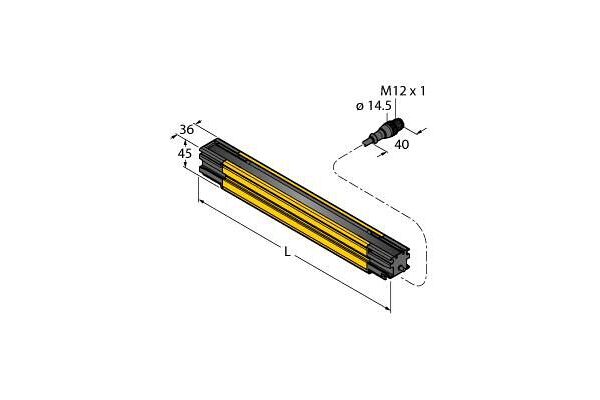

  • Width sensor
    36 mm
  • Length of sensor
    45 mm
  • Response time
    13.3 s
  • Approvals / Compliance
    SIL 3
    Ple
    CL3
  • Cable length (m)
    0.3

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Turck

Product attachments

file-34203-f9fcae83ad69578b4e6ec72b08355e26.pdf (PDF, 280.35 kB)
