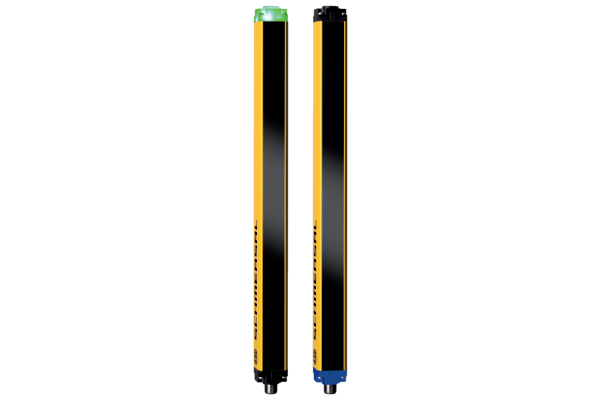

SLC240COM-ER-0970-30 Machine safety light curtain

SLC240COM-ER-0970-30
Safety type 2 in accordance with IEC 61496-1
User-friendly parameter setting, no tools required
Reliable safety concept in case of interferences (EMC, welding sparks)
Process safety with highest availability
active integrated set-up tool
  • SKU
    4030661507279
  • Manufacturer code
    103016166
  • Current, output current, fail-safe output, maximum
    0.25 A
  • Type of Execution, IP Protection class, General
    IP67
  • Type of Execution, Protection class (Operating resource)
    3
  • Type of Execution, Overvoltage category IEC/EN 60664-1
    III
  • Type of execution, switching output, fail-safe output, electric
    p-type
  • Resolution of the light curtain
    30 mm
  • Protective field height (mm)
    970 mm
  • Cable length
    100 m
  • Length, Sensor
    33 mm
  • Length, Wave length, sensor
    880 nm
  • Range, safety field
    12 m
  • Area, range, protection field, minimum
    0.3 m
  • Width, Sensor
    27.8 mm
  • Electrical data, Terminal connector, Receiver
    Connector plug M12, 5-pole
  • Electrical data, Terminal, Connector, Transmitter
    Connector plug M12, 4-pole
  • Material, housing
    Aluminium
  • Standard, standards
    EN IEC 61496-1
    EN IEC 61496-2
  • Number of beams
    48
  • Number, fail-safe digital outputs
    2
  • PIM maintenance status
    Discharge "Online catalog"
  • PNV, standard, certificates
    cULus
    TÜV
  • Power, electrical consumption, receiver, maximum
    10 W
  • Power, electrical consumption, transmitter, maximum
    5 W
  • Recommended, Safety switchgear
    SRB-E 301
  • Electrical data, Terminal, Connector, Transmitter, General
    Connector
  • Safety parameters, Category, EN ISO 13849
    2
  • Safety parameters, Mission time
    20 Year(s)
  • Safety parameter
    EN ISO 13849-1
    EN IEC 62061
  • Safety parameters, Performance Level,
    c
  • Safety values, PFD value
    0.00000000805 /h
  • Safety parameters, Safety Integrity Level (SIL)
    1
  • Safety parameters, Safety type in accordance with IEC 61496-1
    2
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661507279
  • SAP, product group
    HAWA: Optical switchgear
  • SAP, gross weight
    1640.000 g
  • SAP, net weight
    1640.000 g
  • Included in delivery, number and type, general
    Kit with 2 mounting angles
  • Temperature, Ambient temperature[generated product variant]
    -10 ... +50 °C
  • Temperature, ambient temperature, maximum
    50 °C
  • Temperature, ambient temperature, minimum
    -10 °C
  • Temperature, storage and transport temperature,[generated product variant]
    -25 ... +70 °C
  • Temperature, storage and transport temperature, maximum
    70 °C
  • Temperature, storage and transport temperature, minimum
    -25 °C
  • Time, Reaction, maximum
    10 ms
  • Tolerance, percentage
    10 %
  • Voltage, Switching voltage OSSD, HIGH signal
    24 V
  • Web Type
    Product range
  • Selection (Yes/No), blanking function
    Yes
  • Selection (Yes/No), CADENAS
    Yes
  • Selection (Yes/No), Integral System Diagnostics, Diagnostics
    Yes
  • Selection (Yes/No), Integral System Diagnostics, status
    Yes
  • Selection (Yes/No), Traceparts
    Yes
  • Height, Sensor
    1011 mm
  • Type of Execution, Master or slave function
    Yes
  • Selection (yes/no), cascadable
    Yes

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Schmersal
