Safety type 4 in accordance with IEC 61496-1
Status and diagnostics via App with bluetooth
Automatic start or restart interlock
active integrated set-up tool
Process safety with highest availability
User-friendly parameter setting, no tools required
optional degree of protection IP69 with protective enclosure (accessories)

SKU

4030661435077
Manufacturer code

103003899
Current, output current, fail-safe output, maximum

0.25 A
Type of Execution, IP Protection class, General

IP67
Type of Execution, Protection class (Operating resource)

3
Type of Execution, Overvoltage category IEC/EN 60664-1

III
Type of execution, switching output, fail-safe output, electric

p-type
Resolution of the light curtain

14 mm
Protective field height (mm)

650 mm
Cable length

100 m
Length, Sensor

33 mm
Length, Wave length, sensor

880 nm
Range, safety field

7 m
Area, range, protection field, minimum

0.3 m
Width, Sensor

27.8 mm
Electrical data, Terminal connector, Receiver

Connector plug M12, 5-pole
Electrical data, Terminal, Connector, Transmitter

Connector plug M12, 4-pole
Material, housing

Aluminium
Standard, standards

EN IEC 61496-1
EN IEC 61496-2
Note, General

I<sub>m</sub> In case of failure (interruption o
Number of beams

64
Number, fail-safe digital outputs

2
PIM maintenance status

Discharge "Online catalog"
PNV, standard, certificates

cULus
TÜV
Power, electrical consumption, receiver, maximum

10 W
Power, electrical consumption, transmitter, maximum

5 W
Recommended, Safety switchgear

SRB-E 301
Electrical data, Terminal, Connector, Transmitter, General

Connector
Safety parameters, Category, EN ISO 13849

4
Safety parameters, Mission time

20 Year(s)
Safety parameter

EN ISO 13849-1
EN IEC 62061
Safety parameters, Performance Level,

e
Safety values, PFD value

0.00000000805 /h
Safety parameters, Safety Integrity Level (SIL)

3
Safety parameters, Safety type in accordance with IEC 61496-1

4
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661435077
SAP, product group

HAWA: Optical switchgear
SAP, gross weight

1120.000 g
SAP, net weight

1120.000 g
Included in delivery, number and type, general

Kit with 2 mounting angles
Temperature, Ambient temperature[generated product variant]

-10 ... +50 °C
Temperature, ambient temperature, maximum

50 °C
Temperature, ambient temperature, minimum

-10 °C
Temperature, storage and transport temperature,[generated product variant]

-25 ... +70 °C
Temperature, storage and transport temperature, maximum

70 °C
Temperature, storage and transport temperature, minimum

-25 °C
Time, Reaction, maximum

20 ms
Tolerance, percentage

10 %
Voltage, Switching voltage OSSD, HIGH signal

24 V
Web Type

Product range
Selection (Yes/No), CADENAS

Yes
Selection (Yes/No), EPLAN

Yes
Selection (Yes/No), Integral System Diagnostics, Diagnostics

Yes
Selection (Yes/No), Integral System Diagnostics, status

Yes
Selection (Yes/No), Traceparts

Yes
Height, Sensor

691 mm

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Schmersal
Need our help?

or call us at

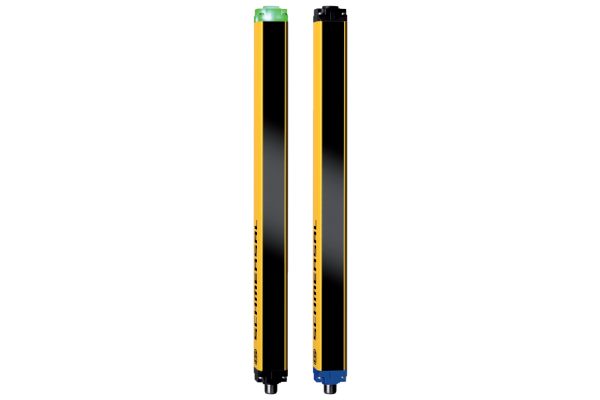

An inquiry about SLC440COM-ER-0650-14
