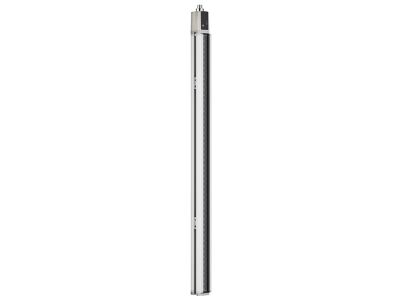

Safety light curtain transmitter with advanced safety ratings and precise resolution for enhanced protection in various environments.

SKU

2110-72000312
Manufacturer code

72000312
Fade-out possible

false
Type of switching output of the OSSD

Other
Operation agent-safety class

Safety class 3
Detection capability for test bodies

30 mm
Explosion safety category for gas

None
Explosion safety category for dust

None
Cascadable

false
Scope of delivery of the one-way system

Transmitter
With muting function

false
Override possible

false
Resolution of the light curtain

30 mm
Reduced resolution

false
Range, safety field

6 m
Protective field height (mm)

1200 mm
Type of safety according to IEC 61496-1

4
Voltage type

DC
With beam coding

true
Clock control possible

false
With monitoring function downstream switching devices

false
With restart blockage

false
Suitable for safety functions

false
Degree of protection (IP)

IP65
Degree of protection (NEMA)

Other
Type of electric connection

Connector M12
Height of sensor

1215 mm
Ambient temperature

0 - 50 °C
Wavelength of the sensor

940 nm
Width sensor

34.7 mm
Length of sensor

39.3 mm
Most suitable applications

Industrial automation Machine guarding Access protection
Protective field height (mm)

1200
Operating range (m)

0.5 ... 6
Resolution (mm)

30
