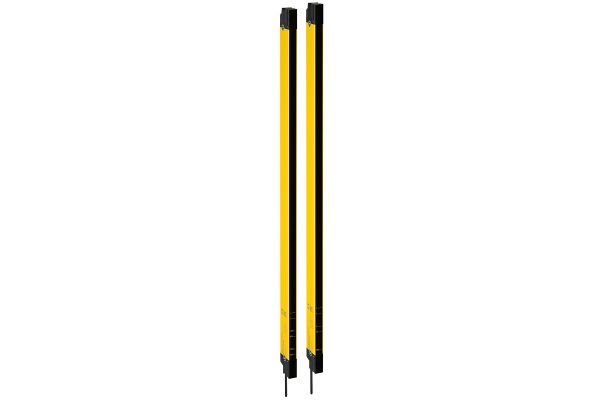

MLC520-S-24-630

Compact safety sensor set with advanced safety certifications and connectivity options.

SKU

2110-68602063
Manufacturer code

68602063
Fade-out possible

false
Type of switching output of the OSSD

PNP
Operation agent-safety class

Safety class 3
Detection capability for test bodies

24 mm
Explosion safety category for gas

None
Explosion safety category for dust

None
Cascadable

false
Scope of delivery of the one-way system

Transmitter and receiver
With muting function

false
Override possible

false
Resolution of the light curtain

24 mm
Reduced resolution

false
Range, safety field

6 m
Protective field height (mm)

630 mm
Type of safety according to IEC 61496-1

4
Voltage type

DC
With beam coding

true
Clock control possible

false
With monitoring function downstream switching devices

false
With restart blockage

false
Suitable for safety functions

false
Degree of protection (IP)

IP65
Degree of protection (NEMA)

Other
Type of electric connection

Connector M12
Height of sensor

630 mm
Ambient temperature

-10 - 55 °C
Wavelength of the sensor

850 nm
Number of protected semiconductor outputs

2
Number of protected contact energized outputs

2
Switching voltage of OSSD at state "high"

18 V
Width sensor

15.4 mm
Length of sensor

32.6 mm
Protective field height (mm)

630
Performance Level (PL)

e
Category

4
ISO Standard

EN ISO 13849
EN ISO 13849-1
Operating range (m)

0.2 ... 6
Resolution (mm)

24

Manufacturer Leuze

Product attachments

DS_MLC520-S-24-630_eng_68602063 (LINK)
