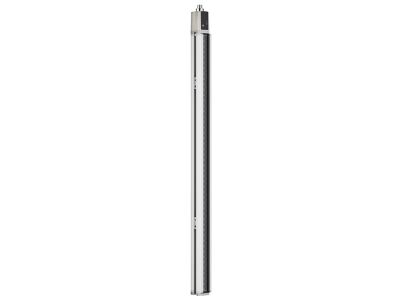

MLC500T20-450-EX2 Safety light curtain transmitter

MLC500T20-450-EX2
Safety light curtain transmitter with high-resolution detection and robust connection.
  • SKU
    2110-68040204
  • Manufacturer code
    68040204
  • Fade-out possible
    false
  • Type of switching output of the OSSD
    Other
  • Operation agent-safety class
    Safety class 3
  • Detection capability for test bodies
    20 mm
  • Explosion safety category for gas
    ATEX gas-ex-protection, Cat. 2G
  • Explosion safety category for dust
    ATEX dust-ex-protection, Cat. 2D
  • Cascadable
    false
  • Scope of delivery of the one-way system
    Transmitter
  • With muting function
    false
  • Override possible
    false
  • Resolution of the light curtain
    20 mm
  • Reduced resolution
    false
  • Range, safety field
    9 m
  • Protective field height (mm)
    450 mm
  • Type of safety according to IEC 61496-1
    4
  • Voltage type
    DC
  • With beam coding
    true
  • Clock control possible
    false
  • With monitoring function downstream switching devices
    false
  • With restart blockage
    false
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP65
  • Degree of protection (NEMA)
    Other
  • Type of electric connection
    Connector M12
  • Height of sensor
    516 mm
  • Ambient temperature
    0 - 55 °C
  • Wavelength of the sensor
    940 nm
  • Width sensor
    30.7 mm
  • Length of sensor
    40.3 mm
  • Protective field height (mm)
    450
  • Ex device category
    3G
    3D
  • Operating range (m)
    0 ... 9
  • Resolution (mm)
    20
  • Manufacturer Leuze

Product attachments

DS_MLC500T20-450-EX2_eng_68040204 (LINK)
