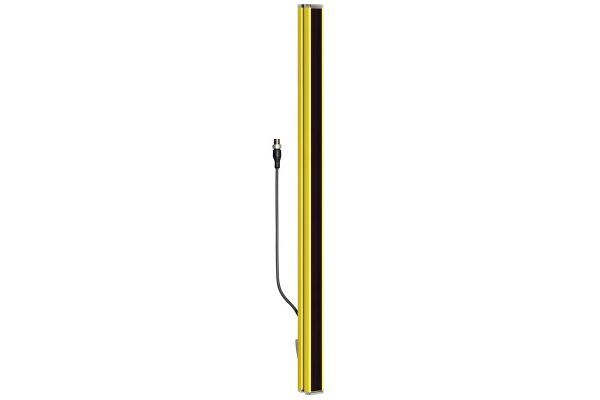

MLC520R20-300G Safety light curtain receiver

MLC520R20-300G
Safety light curtain receiver with high-level safety features and quick response time.
  • SKU
    2110-68021203
  • Manufacturer code
    68021203
  • Fade-out possible
    false
  • Type of switching output of the OSSD
    Other
  • Operation agent-safety class
    Safety class 3
  • Detection capability for test bodies
    20 mm
  • Explosion safety category for gas
    None
  • Explosion safety category for dust
    None
  • Cascadable
    false
  • Scope of delivery of the one-way system
    Receiver
  • With muting function
    false
  • Override possible
    false
  • Resolution of the light curtain
    20 mm
  • Reduced resolution
    false
  • Protective field height (mm)
    300 mm
  • Type of safety according to IEC 61496-1
    4
  • Voltage type
    Other
  • With beam coding
    true
  • Clock control possible
    false
  • With monitoring function downstream switching devices
    false
  • With restart blockage
    false
  • Suitable for safety functions
    false
  • Degree of protection (IP)
    IP65
  • Degree of protection (NEMA)
    Other
  • Type of electric connection
    Connector M12
  • Height of sensor
    314 mm
  • Ambient temperature
    0 - 55 °C
  • Width sensor
    29 mm
  • Length of sensor
    53 mm
  • Protective field height (mm)
    300
  • Performance Level (PL)
    e
  • Category
    4
  • ISO Standard
    EN ISO 13849
    EN ISO 13849-1
  • Cascading
    Guest
  • Resolution (mm)
    20
  • Manufacturer Leuze

Product attachments

DS_MLC520R20-300G_eng_68021203 (LINK)
