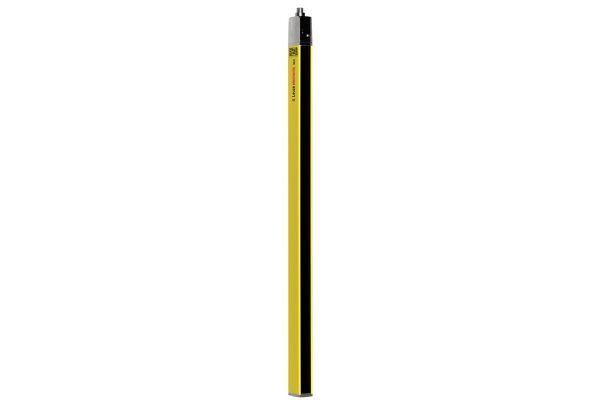

Safety light curtain transmitter with high safety standards and reliable protection.

SKU

2110-68008403
Manufacturer code

68008403
Fade-out possible

false
Type of switching output of the OSSD

Other
Operation agent-safety class

Safety class 3
Detection capability for test bodies

40 mm
Explosion safety category for gas

None
Explosion safety category for dust

None
Cascadable

false
Scope of delivery of the one-way system

Transmitter
With muting function

false
Override possible

false
Resolution of the light curtain

40 mm
Reduced resolution

false
Range, safety field

20 m
Protective field height (mm)

300 mm
Type of safety according to IEC 61496-1

4
Voltage type

DC
With beam coding

true
Clock control possible

false
With monitoring function downstream switching devices

false
With restart blockage

false
Suitable for safety functions

false
Degree of protection (IP)

IP65
Degree of protection (NEMA)

Other
Type of electric connection

Connector M12
Height of sensor

366 mm
Ambient temperature

-30 - 55 °C
Wavelength of the sensor

940 nm
Width sensor

29 mm
Length of sensor

35.4 mm
Protective field height (mm)

300
Operating range (m)

0 ... 20
Resolution (mm)

40

Manufacturer Leuze
Need our help?

or call us at

An inquiry about MLC502T40-300

Please enter your inquiry below and we'll get back to you as soon as possible.

Company

Your name

E-mail

Phone number

Message

Product attachments

DS_MLC502T40-300_eng_68008403 (LINK)
