MLC510R30-225/A

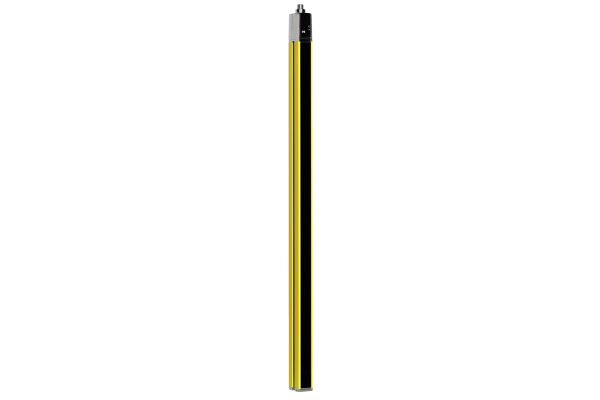

Safety light curtain receiver with high-resolution detection and quick response time, designed for secure applications.

SKU

2110-68007302
Manufacturer code

68007302
Fade-out possible

false
Type of switching output of the OSSD

Other
Operation agent-safety class

Safety class 3
Detection capability for test bodies

30 mm
Explosion safety category for gas

None
Explosion safety category for dust

None
Cascadable

false
Scope of delivery of the one-way system

Receiver
With muting function

false
Override possible

false
Resolution of the light curtain

30 mm
Reduced resolution

false
Protective field height (mm)

225 mm
Type of safety according to IEC 61496-1

4
Voltage type

Other
With beam coding

true
Clock control possible

false
With monitoring function downstream switching devices

false
With restart blockage

false
Suitable for safety functions

false
Degree of protection (IP)

IP65
Degree of protection (NEMA)

Other
Type of electric connection

Connector M12
Height of sensor

291 mm
Ambient temperature

0 - 55 °C
Type of interface for safety communication

AS-Interface Safety at Work
Width sensor

29 mm
Length of sensor

35.4 mm
Most suitable applications

Industrial safety applications Machine protection
Protective field height (mm)

225
Performance Level (PL)

e
Category

4
ISO Standard

EN ISO 13849
EN ISO 13849-1
Type of interface

AS-Interface Safety at Work
Resolution (mm)

30

Manufacturer Leuze

Product attachments

DS_MLC510R30-225-A_eng_68007302 (LINK)
