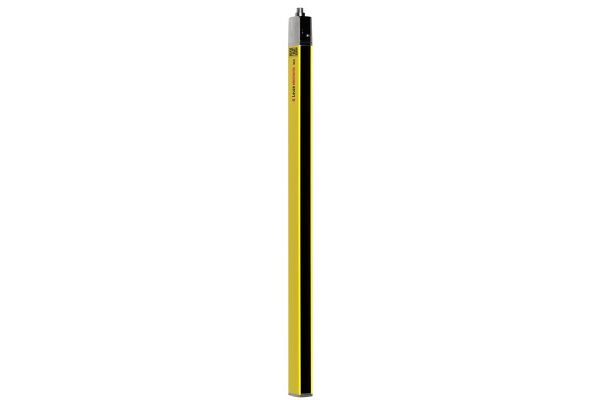

Safety light curtain transmitter with high safety standards and precise resolution.

SKU

2110-68000118
Manufacturer code

68000118
Fade-out possible

false
Type of switching output of the OSSD

Other
Operation agent-safety class

Safety class 3
Detection capability for test bodies

14 mm
Explosion safety category for gas

None
Explosion safety category for dust

None
Cascadable

false
Scope of delivery of the one-way system

Transmitter
With muting function

false
Override possible

false
Resolution of the light curtain

14 mm
Reduced resolution

false
Range, safety field

6 m
Protective field height (mm)

1800 mm
Type of safety according to IEC 61496-1

4
Voltage type

DC
With beam coding

true
Clock control possible

false
With monitoring function downstream switching devices

false
With restart blockage

false
Suitable for safety functions

false
Degree of protection (IP)

IP65
Degree of protection (NEMA)

Other
Type of electric connection

Connector M12
Height of sensor

1866 mm
Ambient temperature

-30 - 55 °C
Wavelength of the sensor

940 nm
Width sensor

29 mm
Length of sensor

35.4 mm
Protective field height (mm)

1800
Operating range (m)

0 ... 6
Resolution (mm)

14

Manufacturer Leuze
