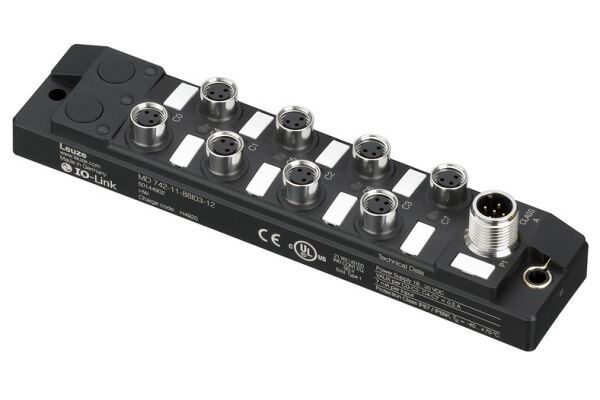

MD 742-11-88IO3-12 IO-Link master

MD 742-11-88IO3-12

Type: IO-Hub; Current consumption, max.: 120 mA; Interface: IO-Link; Connections: 9 Piece(s); Sensor connections: 8 Piece(s); Connections for voltage supply: 1 Piece(s); Connection: Connector, M12, Metal, 5 -pin; Design, housing: Cubic; Dimensions: 32 mm x 39 mm x 144.3 mm; Housing material: Halogen-free, Plastic; Ambient temperature, operation: -40 ... 70 °C; Degree of protection: IP 67, IP 65, IP 69K; Certifications: c UL US

  • SKU
    2110-50144902
  • Manufacturer code
    50144902
  • Ethernet
    false
  • Manageable
    false
  • Degree of protection (IP)
    IP67
  • Height
    39 mm
  • Width
    32 mm
  • Depth
    144.3 mm
  • Number of other ports
    8
  • Housing material
    Plastic
  • Interface
    IO-Link
  • Design
    Cubic
  • Ambient temperature, operation (°C)
    -40 ... 70
  • Manufacturer Leuze

Product attachments

DS_MD-742-11-88IO3-12_eng_50144902 (LINK)
