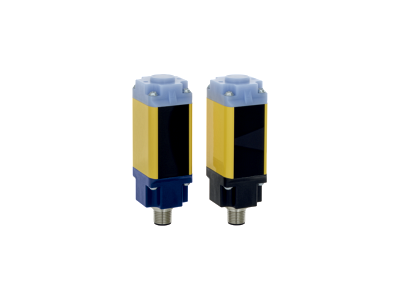

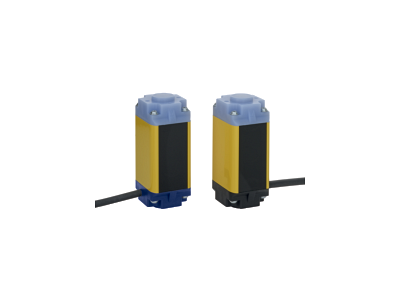

SLB440-ER-3-ST Machine safety light barrier

SLB440-ER-3-ST
Compact design With integral evaluation
Height range 75 m (Reserve up to 90 m)
Safe OSSD outputs to PLe
Automatic start or restart interlock
Sturdy metal enclosure with M12 connector or cable
Version with heater for outdoor applications down to –30°C
Set-up tool and diagnostic indication
  • SKU
    4030661492353
  • Manufacturer code
    103013523
  • Coding, light barrier beam
    3
  • Current, output current, fail-safe output, maximum
    0.2 A
  • Type of Execution, IP Protection class, General
    IP67
  • Type of Execution, Protection class (Operating resource)
    3
  • Type of Execution, Overvoltage category IEC/EN 60664-1
    III
  • Type of switching output
    p-type
  • Diameter, Detection ability for test bodies at v = 1.6 m/s
    40 mm
  • Height
    91 mm
  • Cable length
    100 m
  • Length, General
    33 mm
  • Length, Wave length, sensor
    880 nm
  • Range of safety field
    15 m
  • Area, range, protection field, minimum
    0.3 m
  • Width, General
    27.8 mm
  • Connector, Receiver
    Connector plug M12, 5-pole
  • Connector, Transmitter
    Connector plug M12, 4-pole
  • Material, housing
    Aluminium
  • Standard, standards
    EN IEC 61496-1
    EN IEC 61496-2
  • Number, beams (light grids, etc.)
    1
  • Number, fail-safe digital outputs
    2
  • PIM maintenance status
    Discharge "Online catalog"
  • PNV, standard, certificates
    cULus
    TÜV
  • Power, electrical consumption, receiver, maximum
    5 W
  • Power, electrical consumption, transmitter, maximum
    5 W
  • Recommended, Safety switchgear
    PROTECT PSC1
    SRB-E-204ST
  • Electrical data, Terminal, Connector, Transmitter, General
    Connector M12
  • Safety parameters, Category, EN ISO 13849
    4
  • Safety parameters, Mission time
    20 Year(s)
  • Safety parameter
    EN ISO 13849-1
    EN IEC 62061
  • Safety parameters, Performance Level,
    e
  • Safety values, PFD value
    0.000000015 /h
  • Safety parameters, Safety Integrity Level (SIL)
    3
  • Type of safety according to IEC 61496-1
    4
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661492353
  • SAP, product group
    HAWA: Optical switchgear
  • SAP, gross weight
    170.000 g
  • SAP, net weight
    170.000 g
  • Temperature, Ambient temperature[generated product variant]
    -30 ... +50 °C
  • Temperature, ambient temperature, maximum
    50 °C
  • Temperature, ambient temperature, minimum
    -30 °C
  • Temperature, storage and transport temperature,[generated product variant]
    -30 ... +70 °C
  • Temperature, storage and transport temperature, maximum
    70 °C
  • Temperature, storage and transport temperature, minimum
    -30 °C
  • Time, Reaction, maximum
    7 ms
  • Tolerance, percentage
    10 %
  • Voltage, Switching voltage OSSD, HIGH signal
    24 V
  • Web Type
    Product range
  • Selection (Yes/No), Beam coding
    Yes
  • Selection (Yes/No), CADENAS
    Yes
  • Selection (Yes/No), EPLAN
    Yes
  • Selection (Yes/No), Integral System Diagnostics, Diagnostics
    Yes
  • Selection (Yes/No), Integral System Diagnostics, status
    Yes
  • Selection (Yes/No), Traceparts
    Yes

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Schmersal

Product attachments

file-27921-631f2bcbd18252ec28c93a4873c501ef.pdf (PDF, 685.17 kB)
