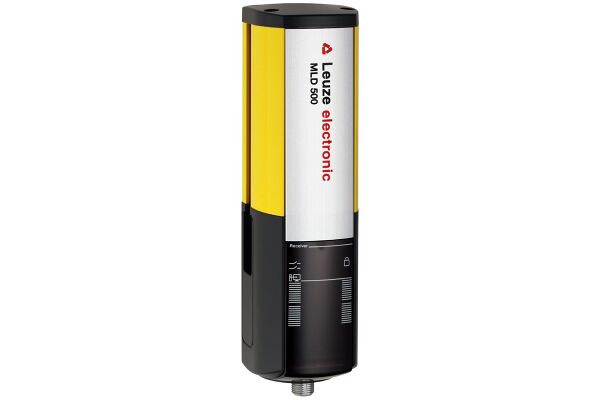

A single light beam safety device receiver designed for reliable safety applications.

SKU

2110-66563400
Manufacturer code

66563400
Number of contact energized outputs with signalling function

0
Number of protected contact energized outputs

0
Type of electric connection

Connector M12
Voltage type

DC
DC
DC
DC
Construction type housing

Cubic
Ambient temperature

-30 - 55 °C
With monitoring function downstream switching devices

false
With restart blockage

false
Response time

50 s
Width

52 mm
Height

193 mm
Length

64.7 m
Operation agent-safety class

Safety class 3
Explosion safety category for gas

None
Explosion safety category for dust

None
Type of safety according to IEC 61496-1

4
Number of semiconductor outputs with signalling function

1
Type of switching output

PNP
Number of protected semiconductor outputs

2
Max. output current at protected output

380 mA
Switching voltage of OSSD at state "high"

18.2 V
Supplyoltage (V)

24
Design

Cubic
Category

4
ISO Standard

EN ISO 13849
EN ISO 13849-1
Most suitable applications

Safety applications requiring high reliability and performance.
Performance Level (PL)

e
