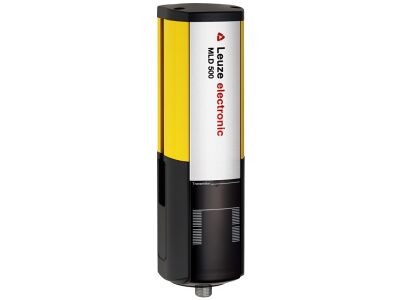

MLD510-XR1/A Single light beam safety device receiver

MLD510-XR1/A
Single light beam safety device receiver with high safety ratings and a cubic design.
  • SKU
    2110-66533401
  • Manufacturer code
    66533401
  • Number of contact energized outputs with signalling function
    0
  • Number of protected contact energized outputs
    0
  • Type of electric connection
    Connector M12
  • Voltage type
    Other
  • Construction type housing
    Cubic
  • Ambient temperature
    -30 - 55 °C
  • With monitoring function downstream switching devices
    false
  • With restart blockage
    false
  • Response time
    30 s
  • Width
    52 mm
  • Height
    193 mm
  • Length
    64.7 m
  • Operation agent-safety class
    Safety class 3
  • Explosion safety category for gas
    None
  • Explosion safety category for dust
    None
  • Type of safety according to IEC 61496-1
    4
  • Type of interface for safety communication
    AS-Interface Safety at Work
  • Design
    Cubic
  • Category
    4
  • ISO Standard
    EN ISO 13849
  • Manufacturer Leuze

Product attachments

DS_MLD510-XR1-A_eng_66533401 (LINK)
