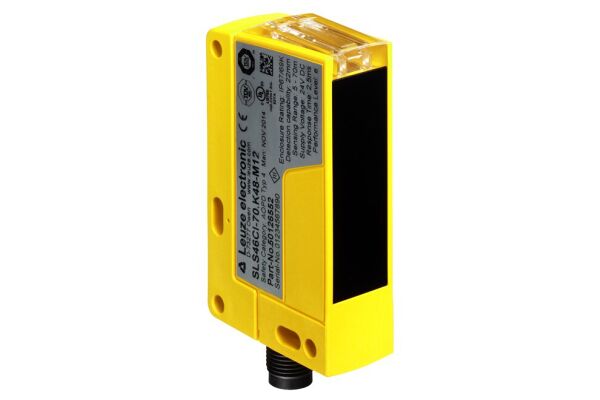

A single light beam safety device transmitter with activation input, designed for high-safety applications.

SKU

2110-50126550
Manufacturer code

50126550
Number of contact energized outputs with signalling function

0
Number of protected contact energized outputs

0
Type of electric connection

Connector M12
Voltage type

DC
DC
DC
DC
Construction type housing

Cubic
Range of safety field

40 m
Ambient temperature

-30 - 60 °C
Wavelength of the sensor

940 nm
With monitoring function downstream switching devices

false
With restart blockage

false
Response time

2.5 s
Width

20.5 mm
Height

76.3 mm
Length

44 m
Operation agent-safety class

Safety class 3
Explosion safety category for gas

None
Explosion safety category for dust

None
Type of safety according to IEC 61496-1

4
Supplyoltage (V)

24
Design

Cubic
Most suitable applications

Compliant with safety standards, ideal for use with MSI-TRMB safety relay systems.
Special version

Activation input
Operating range (m)

0.25 ... 40
Operating range limit (m)

0.25 ... 48
