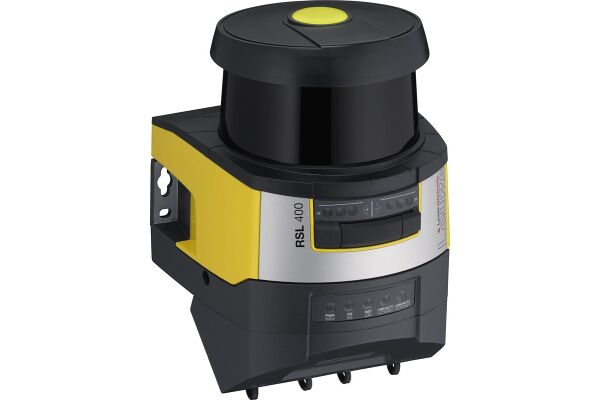

RSL420P-M/CU400P-4M12 Safety laser scanner

RSL420P-M/CU400P-4M12
A safety laser scanner with a 270° scanning angle, suitable for monitoring and protection tasks. It provides reliable safety with SIL 2 and Performance Level d certifications.
  • SKU
    2110-53800330
  • Manufacturer code
    53800330
  • Scanning interval
    0.09 Hz
  • Number of safety fields
    1
  • Type of electric connection
    Connector M12
  • Operation agent-safety class
    Safety class 3
  • Width sensor
    140.2 mm
  • Height of sensor
    170 mm
  • Length of sensor
    142 mm
  • With configurable message output
    true
  • Laser protection class
    Class 1
  • Ambient temperature
    0 - 50 °C
  • Response time
    80 s
  • Transmission range of the safety field
    0 m
  • Transmission range of the alert field
    0 m
  • Type of safety according to IEC 61496-1
    3
  • Voltage type
    DC
    DC
    DC
    DC
  • With monitoring function downstream switching devices
    false
  • With alert field output
    false
  • Wavelength of the sensor
    905 nm
  • With restart blockage
    false
  • Suitable for safety functions
    false
  • Most suitable applications
    Monitoring and protection tasks
  • Supplyoltage (V)
    24
  • Resolution of protective field (adjustable) (mm)
    30
    40
    50
    60
    70
    150
  • Performance Level (PL)
    d
  • ISO Standard
    EN ISO 13849-1
  • Connection 1
    M12, 5 -pin
  • Connection 2
    M12, 4 -pin
  • Operating range (m)
    0 ... 4.5
  • Manufacturer Leuze

Product attachments

DS_RSL420P-M-CU400P-4M12_eng_53800330 (LINK)
