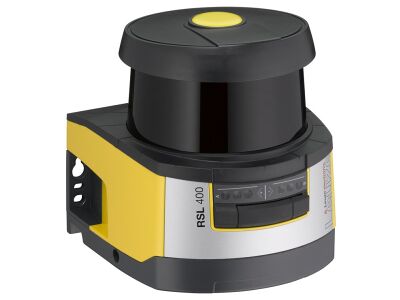

This safety laser scanner offers a 270° scanning angle with adjustable protective field resolution. It is designed for reliable safety functions with an operating range of up to 8.25 meters and a warning field range of up to 20 meters.

SKU

2110-53800303
Manufacturer code

53800303
Scanning interval

0.09 Hz
Number of safety fields

1
Type of electric connection

Connector M12
Operation agent-safety class

Safety class 3
Width sensor

140.2 mm
Height of sensor

170 mm
Length of sensor

142 mm
With configurable message output

true
Laser protection class

Class 1
Ambient temperature

0 - 50 °C
Response time

80 s
Transmission range of the safety field

0 m
Transmission range of the alert field

0 m
Type of safety according to IEC 61496-1

3
Voltage type

DC
DC
DC
DC
With monitoring function downstream switching devices

false
With alert field output

false
Wavelength of the sensor

905 nm
With restart blockage

false
Suitable for safety functions

false
Most suitable applications

Industrial safety monitoring Automated machinery safety
Supplyoltage (V)

24
Resolution of protective field (adjustable) (mm)

30
40
50
60
70
150
Performance Level (PL)

d
ISO Standard

EN ISO 13849-1
Connection 1

M12, 4 -pin
Connection 2

M12, 4 -pin
Operating range (m)

0 ... 8.25

Manufacturer Leuze
