To monitor 1 ... 2 safety edge(s)
1 safety contact, STOP 0
1 Signalling output

SKU

4030661289168
Manufacturer code

101153919
Type of Execution, IP Protection class, Clearance

IP54
Type of Execution, IP Protection class, General

IP40
Type of Execution, IP Protection class, clips or terminals

IP20
Type of Execution, Mechanical life, minimum,

20000000 Operations
Type of execution, mounting

Snaps onto standard DIN rail to EN 60715
Type of Execution, Overvoltage category IEC/EN 60664-1

III
Depth, General

121 mm
Height, General

100 mm
Width, General

22.5 mm
Electrical data, Cable section, maximum

2 x 1.5 mm²
Housing material

Glass-fibre, thermoplastic
Standard, EMC rating

EMC-Directive
Standard, standards

EN ISO 13849-1
EN ISO 13850
Note, General

The overall machine safety depends on the professional mount
If there it any risk whatsoever, the machine may not be rest
Note, applications

Safety edges
Note, Wiring diagram

Monitoring the safety edges SE 40 / SE 70 with a safety moni
If only one safety edges is connected, the terminals S12/S22
The manual reset function, if required, is realised by the m
Both re-initialisation and auto-reset must comply with the r
The wiring diagram is shown for the de-energised condition.
Number, LED's

2
Number, Safety contacts

1
PIM maintenance status

Discharge "Online catalog"
PNV, standard, certificates

cULus
TÜV
Type of electric connection

Screw terminals M20 x 1.5
Review, Resistance to vibrations to EN 60068-2-6

10 … 55 Hz, amplitude 0.15 mm
Safety parameters, Stop-Category

0
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661289168
SAP, product group

HAWA: Electromechanical switchgear
SAP, gross weight

166.000 g
SAP, net weight

166.000 g
Indication, Operating state, LED

Safety edge function
Temperature, Ambient temperature[generated product variant]

+5 ... +55 °C
Temperature, ambient temperature, maximum

55 °C
Temperature, ambient temperature, minimum

5 °C
Voltage, Rated impulse withstand voltage

4 kV
Voltage, rated operating voltage

24 VDC +20% / -10%
Voltage, type

DC
Selection (Yes/No), Automatic reset function

Yes
Selection (Yes/No), Short-circuit recognition

Yes
Selection (Yes/No), Integral System Diagnostics, status

Yes
Selection (Yes/No), Reset after disconnection of supply voltage

Yes
Selection, (Yes/No), Wire breakage detection

Yes
Standard, climatic stress

EN ISO 13856-2
Tolerance, operating voltage, DC, maximum

20 %
Tolerance, operating voltage, DC, minimum

-10 %
Voltage, Rated control voltage at DC, maximum

28.8 VDC
Voltage, Rated control voltage at DC, minimum

21.6 VDC
Voltage, rated operating voltage

24 VDC
Selection (Yes/No), Earth connection detection

Yes
Current, Rated operating current

150 mA
Current, Utilisation category AC-15

2 A
Current, Utilisation category DC-13

2 A
Type of Execution, Degree of pollution VDE 0110

2
Type of Execution, Overvoltage category VDE 0110

3
Cable length

200 m
Electrical data, Utilisation category

DC-13
AC-15
Note, Electrical Data, Cable section

All indications including the conductor ferrules.
Note, Safety Parameters, PFH-value

up to max. 5,000 switching cycles/year
Number, Auxiliary contacts

1
Number, Signalling outputs

1
Power, electrical consumption, maximum

4 W
Safety parameters, Category, EN ISO 13849

1
Safety parameters, Category, to EN 954

1
Safety parameters, Mission time

20 Year(s)
Safety parameters, Performance Level,

c
Safety values, PFD value

0.00000224 /h
Time, Reaction, maximum

16 ms
Time, Time to readiness, maximum

300 ms
Voltage, Utilisation category AC-15

230 VAC
Voltage, Utilisation category DC-13

24 VDC
Selection (Yes/No), Electronic Fuse

Yes

Manufacturer Schmersal
Need our help?

or call us at

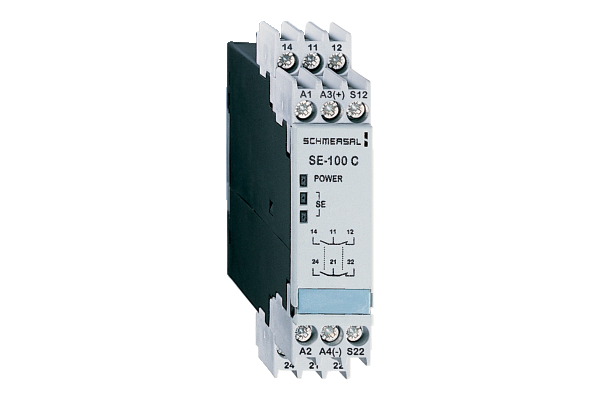

An inquiry about SE-100 C EVALUATION UNIT
