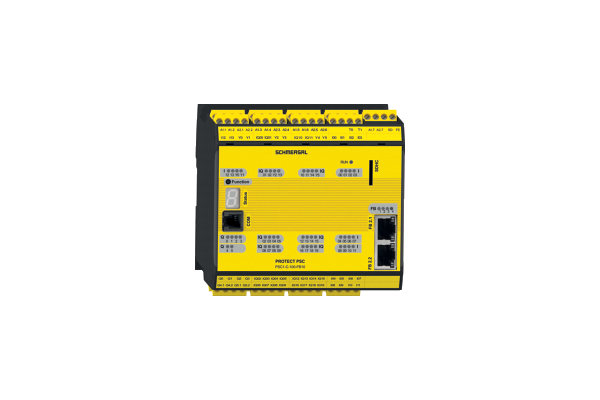

PSC1-C-100-FB10 Machine safety controller

PSC1-C-100-FB10
Memory card
conversion of the field bus protocols by software
integrated SD-Bus-Gateway
Modularly expandable to up to 272 safe inputs
outputs
Safe spindle monitoring To EN 61800-5-2 (Safe Drive Monitoring) for up to 12 spindles
4 safe 2 A pp-switching semiconductor outputs, switchable to 2 safe p-
n-switching semiconductor outputs
14 safe inputs on the base module
20 switchable, safe inputs
outputs
6 Signalling outputs
2 safety relay contacts
  • SKU
    4030661623979
  • Manufacturer code
    103049451
  • Type of application, Relative humidity [generated produtct variant]
    5 ... 85 %
  • Type of application, Relative humidity, maximum
    85 %
  • Type of application, Relative humidity, minimum
    5 %
  • CAD, traceparts, product ID
    69-08082018-070645
  • Current, Rated operating current, Safe digital outputs
    2000 mA
  • Current, Utilisation category AC-15, Safe relay outputs
    2 A
  • Current, Utilisation category DC-13, Safe relay outputs
    2 A
  • Interface
    EtherCAT
    EtherNet IP
    PROFINET IO
  • Type of Execution, Terminals, mechanical
    Removable screw terminals
  • Type of Execution, Degree of pollution IEC/EN 60664-1
    2
  • Type of Execution, IP Protection class, General
    IP20
  • Type of execution, mounting
    can be clipped into standard rail
  • Type of Execution, Overvoltage category IEC/EN 60664-1
    III
  • Type of execution, switching output, fail-safe output, electric
    short-circuit proof, p-type (Q2 und Q3)
  • Depth, General
    115 mm
  • Diameter, Wire cross-section, AWG, maximum
    12 AWG
  • Diameter, Wire cross-section, AWG, minimum
    24 AWG
  • Height, General
    100 mm
  • Height, permissible installation height above sea level, maximum
    2000 m
  • Width
    112.5 mm
  • Electrical data, Cable section, maximum
    2.5 mm²
  • Electrical data, Cable section, minimum
    0.2 mm²
  • Electrical data, Designation device connection, Communication interface
    RJ45
  • Standard, EMC rating
    DIN EN 61000-6-2
    DIN EN 61000-6-7
    DIN EN 61326-3
  • Standard, interfering radiation
    DIN EN 61000-6-4
  • Standard, EMV, Electromagnetic compatibility
    DIN EN 62061
    DIN EN 61800-3
  • Note, Relative humidity
    non-condensing
  • Number, Relay outputs (1-channel)
    2
  • Anzahl, Erweiterungsbaugruppen, maximal
    8
  • Number, pulse output (test pulse output)
    6
  • Number, digital fail-safe inputs
    14
  • Number, fail-safe digital outputs
    4
  • Number, Signalling outputs
    6
  • PIM maintenance status
    Discharge "Online catalog"
  • PNV, standard, certificates
    cULus
    TÜV
  • Safety parameters, Category, EN ISO 13849
    4
  • Safety parameters, Mission time
    20 Year(s)
  • Safety parameters, Performance Level,
    e
  • Safety values, PFD value
    0.0000000122 /h
  • Safety parameters, Safety Integrity Level (SIL)
    3
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661623979
  • SAP, product group
    HAWA: Electromechanical switchgear
  • SAP, gross weight
    975.000 g
  • SAP, net weight
    975.000 g
  • Included in delivery, number and type, general
    Backplane bus connector
    Connector terminals
  • Temperature, Ambient temperature[generated product variant]
    +0 ... +50 °C
  • Temperature, ambient temperature, maximum
    50 °C
  • Temperature, ambient temperature, minimum
    0 °C
  • Temperature, storage and transport temperature,[generated product variant]
    -25 ... +70 °C
  • Temperature, storage and transport temperature, maximum
    70 °C
  • Temperature, storage and transport temperature, minimum
    -25 °C
  • Tolerance, operating voltage, DC, maximum
    20 %
  • Tolerance, operating voltage, DC, minimum
    -15 %
  • Voltage, Operating voltage, maximum
    28.8 VDC
  • Voltage, Operating voltage, minimum
    20.4 VDC
  • Voltage, rated operating voltage
    24 VDC
  • Voltage, type
    DC
  • Voltage, Utilisation category AC-15, Safe relay outputs
    230 VAC
  • Voltage, Utilisation category DC-13, Safe relay outputs
    24 VDC
  • Web Type
    Product range
  • Selection (Yes/No), EPLAN
    Yes
  • Selection (Yes/No), Integrated SD gateway
    Yes
  • Auswahl (Ja/Nein), Master-Master-Kommunikation
    No
  • SD card slot
    Yes
  • Number, digital fail-safe in-/outputs
    20
