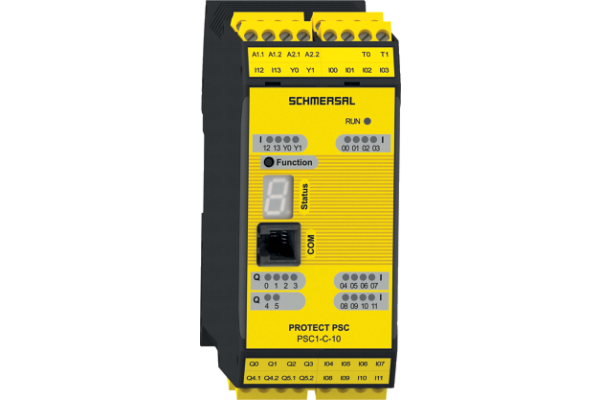

Free programmable in-/outputs, 2 A p-type
Connection for all conventional safety switchgear up to PL e to ISO 13849-1
Modular expansion with up to 64 inputs
outputs
4 safe 2 A pp-switching semiconductor outputs, switchable to 2 safe p-
n-switching semiconductor outputs
14 safe inputs on the base module
2 Signalling outputs
2 safety relay contacts

SKU

4030661482101
Manufacturer code

103012194
Type of application, Relative humidity [generated produtct variant]

5 ... 85 %
Type of application, Relative humidity, maximum

85 %
Type of application, Relative humidity, minimum

5 %
Current, Rated operating current, Safe digital outputs

2000 mA
Current, Utilisation category AC-15, Safe relay outputs

2 A
Current, Utilisation category DC-13, Safe relay outputs

2 A
Type of Execution, Terminals, mechanical

Removable screw terminals
Type of Execution, Degree of pollution IEC/EN 60664-1

2
Type of Execution, IP Protection class, General

IP20
Type of execution, mounting

can be clipped into standard rail
Type of Execution, Overvoltage category IEC/EN 60664-1

III
Type of execution, switching output, fail-safe output, electric

short-circuit proof, p-type (Q2 und Q3)
Depth, General

115 mm
Diameter, Wire cross-section, AWG, maximum

12 AWG
Diameter, Wire cross-section, AWG, minimum

24 AWG
Height, General

100 mm
Height, permissible installation height above sea level, maximum

2000 m
Width

45 mm
Electrical data, Cable section, maximum

2.5 mm²
Electrical data, Cable section, minimum

0.2 mm²
Standard, EMC rating

DIN EN 61000-6-2
DIN EN 61000-6-7
DIN EN 61326-3
Standard, interfering radiation

DIN EN 61000-6-4
Standard, EMV, Electromagnetic compatibility

DIN EN 62061
DIN EN 61800-3
Note, Relative humidity

non-condensing
Number, Relay outputs (1-channel)

2
Anzahl, Erweiterungsbaugruppen, maximal

2
Number, pulse output (test pulse output)

2
Number, digital fail-safe inputs

14
Number, fail-safe digital outputs

4
Number, Signalling outputs

2
PIM maintenance status

Discharge "Online catalog"
PNV, standard, certificates

cULus
TÜV
Safety parameters, Category, EN ISO 13849

4
Safety parameters, Mission time

20 Year(s)
Safety parameters, Performance Level,

e
Safety values, PFD value

0.0000000126 /h
Safety parameters, Safety Integrity Level (SIL)

3
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661482101
SAP, product group

HAWA: Electromechanical switchgear
SAP, gross weight

500.000 g
SAP, net weight

500.000 g
Included in delivery, number and type, general

Backplane bus connector
Connector terminals
Temperature, Ambient temperature[generated product variant]

+0 ... +50 °C
Temperature, ambient temperature, maximum

50 °C
Temperature, ambient temperature, minimum

0 °C
Temperature, storage and transport temperature,[generated product variant]

-25 ... +70 °C
Temperature, storage and transport temperature, maximum

70 °C
Temperature, storage and transport temperature, minimum

-25 °C
Tolerance, operating voltage, DC, maximum

20 %
Tolerance, operating voltage, DC, minimum

-15 %
Voltage, Operating voltage, maximum

28.8 VDC
Voltage, Operating voltage, minimum

20.4 VDC
Voltage, rated operating voltage

24 VDC
Voltage, type

DC
Voltage, Utilisation category AC-15, Safe relay outputs

230 VAC
Voltage, Utilisation category DC-13, Safe relay outputs

24 VDC
Web Type

Product range
Selection (Yes/No), EPLAN

Yes
Selection (Yes/No), Traceparts

Yes
