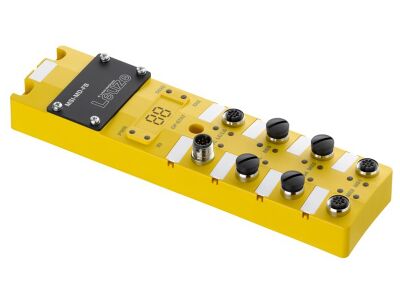

MSI-MD-FB Muting interface

MSI-MD-FB
Muting interface designed for integration with MLC and ELC safety light curtains and MLD multiple light beam devices.
  • SKU
    2110-549992
  • Manufacturer code
    549992
  • Rail mounting possible
    true
  • Voltage type (supply voltage)
    DC
  • Supply voltage DC
    24 - 24 V
  • SIL according to IEC 61508
    3
  • Performance level according to EN ISO 13849-1
    Level e
  • Width
    60 mm
  • Height
    38.3 mm
  • Depth
    225 mm
  • Power consumption
    3.6 W
  • Model
    Basic device
  • Suitable for monitoring of emergency-stop circuits
    false
  • Suitable for monitoring of valves
    false
  • Suitable for monitoring of optoelectronic protection equipment
    true
  • Suitable for monitoring of tactile sensors
    false
  • Suitable for monitoring of magnetic switches
    false
  • Suitable for monitoring of proximity switches
    false
  • Evaluation inputs
    Other
  • With start input
    true
  • With muting function
    false
  • With feedback circuit
    true
  • Type of control voltage 1
    AC
  • Number of outputs, safety related, undelayed, semiconductors
    2
  • Number of outputs, safety related, delayed, semiconductors
    0
  • Number of outputs, signalling function, delayed, semiconductors
    0
  • Voltage type (operating voltage)
    DC
  • Operating voltage DC
    24 - 24 V
  • Rated switch current
    0.38 A
  • Type of safety according to IEC 61496-1
    None
  • Stop category according to IEC 60204
    Other
  • With approval for BG BIA
    false
  • With approval according to UL
    false
  • Performance Level (PL)
    e
  • Category
    4
  • ISO Standard
    EN ISO 13849-1
  • Most suitable applications
    Muting applications in safety systems.
  • Ambient temperature, operation (°C)
    -30 ... 60
  • Type of switch function
    OSSDs
  • Number of switching inputs (pcs)
    8
  • Number of safety-related switching outputs (OSSDs) (pcs)
    2
  • Number of switching outputs
    3
  • Manufacturer Leuze

Product attachments

DS_MSI-MD-FB_eng_549992 (LINK)
