Suitable for AZM 400

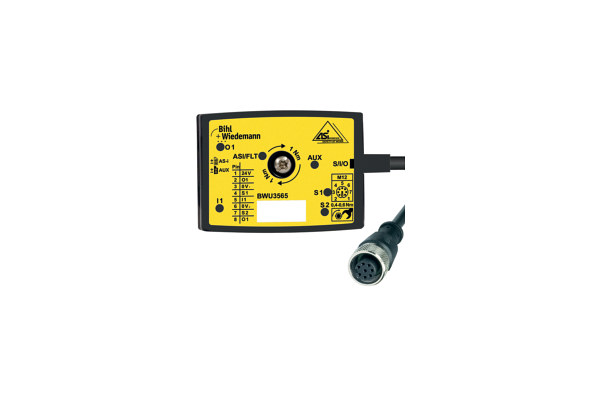

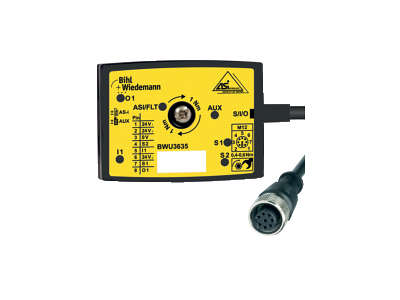

Safe active AS-i distributor
Connections for profile cable AS-i & AUX
With 2 fail-safe inputs for OSSDs and one digital output that is not fail-safe
M12, 8-pole connecting cable 1 m
Protection class IP67

SKU

4030661508917
Manufacturer code

103016677
Type of Execution, IP Protection class, General

IP67
Depth, General

19 mm
Height, General

45 mm
Width, General

60 mm
Material, housing

Plastic
PIM maintenance status

Discharge "Online catalog"
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661508917
SAP, product group

HAWA: Electromechanical switchgear
SAP, gross weight

140.840 g
SAP, net weight

140.840 g
Temperature, Ambient temperature[generated product variant]

-20 ... +60 °C
Temperature, ambient temperature, maximum

60 °C
Temperature, ambient temperature, minimum

-20 °C
Temperature, storage and transport temperature,[generated product variant]

-30 ... +85 °C
Temperature, storage and transport temperature, maximum

85 °C
Temperature, storage and transport temperature, minimum

-30 °C
Web Type

Product range
Electrical data, AS-i, Version

V 2.1
Electrical data, Terminal, Connector, Transmitter, General

Cable connector M12, 8-pole, A-coded
Cable length

1 m
Standard, standards

EN ISO 13849-1
EN IEC 62061
EN IEC 62026-2
Current, consumption, AS-i, maximum

60 mA
Electrical Data, Inputs, AS-i, Channel 1

Data bits DI 0 / DI 1 = dynamic code transmission
Electrical Data, Inputs, AS-i, Channel 2

Data bits DI 2 / DI 3 = dynamic code transmission
Electrical Data, AS-i, Input module address

0
Electrical data, AS-i, Parameter bits, P0

Control system watchdog
Electrical data, AS-i, Profile

S-7.B.F.1
Electrical data, Outputs, AS-i, DO 0

Digital output, Motor control system
Electrical data, Outputs, AS-i, DO 1 … DO 3

No Function
Material, cable

PUR
Note, Electrical data, AS-i, Input module address

Preset to address 0, can be changed through AS-interface bus
Note, Electrical data, AS-i, Parameter bits

Set the parameter outputs to "1111" (0xF)
Note, LED switching conditions display

(1) green/red LED (AS-i duo LED): Supply voltage / communica
(2) LED green: AUX-Power available
(3) LED yellow: S1 = Status safety input 1
(4) LED yellow: S2 = Status safety input 2
(5) LED yellow: I1 = Status input I1
(6) LED yellow: o1 = Status output o1
Review, Resistance to vibrations to EN 60068-2-6

10 … 55 Hz, amplitude 0.5 mm
Review, restistance to shock

15 g / 11 ms
Safety parameters, Category, EN ISO 13849

4
Safety parameters, Mission time

20 Year(s)
Safety parameter

EN IEC 62061
Safety parameters, Performance Level,

e
Safety parameters, Safety Integrity Level (SIL)

3
Time, Reaction, maximum

11 ms
Voltage, Operating voltage, AS-i, maximum

31.6 VDC
Voltage, Operating voltage, AS-i, minimum

21.6 VDC
Voltage, rated operating voltage, ASi, maximum

31.6 VDC
Voltage, rated operating voltage, ASi, minimum

21.6 VDC
Voltage, type, ASi

DC
Selection (Yes/No), Safety functions

Yes
Selection (Yes/No), Integral System Diagnostics, status

Yes
Electrical data, AS-i, Parameter bits, P1

Diagnostics signal safety switchgear (inverted)
Electrical data, AS-i, Parameter bits, P2 ... P3

No function
Electrical Data, AS-i, Specification

Safety-Slave
Note, operating voltage, auxiliary voltage

stabilised PELV power supply
Safety values, PFD value

0.000000619
Safety values, PFD value

0.00000000518 /h
Tolerance, operating voltage, auxiliary voltage, maximum

10 %
Tolerance, operating voltage, auxiliary voltage, minimum

-15 %
Voltage, Rated operating voltage, Auxiliary voltage (AUX)

24 VDC -15% / +10% (stabilised PELV)
Voltage, rated operating voltage, auxiliary voltage

24 VDC
Voltage, type, auxiliary voltage

DC
