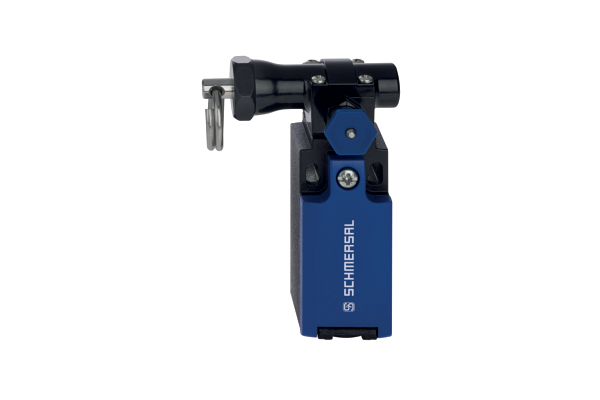

ZQ215AL-02 Pull-wire emergency stop switch

ZQ215AL-02
Metal enclosure
wire pull and breakage detection
Design to EN 50047
Quick connection technology as connection terminals rotated by 45°
cable entry 1 x M20 x 1,5
  • SKU
    4030661616759
  • Manufacturer code
    103044936
  • Type of application, Actuating direction
    left
  • Current, Thermal test current
    10 A
  • Current, Utilisation category AC-15
    3 A
  • Current, Utilisation category DC-13
    3 A
  • Type of Execution, IP Protection class, General
    IP67
    IP66
  • Type of Execution, Mechanical life, minimum,
    10000000 Operations
  • Length, wire, maximum
    25 m
  • Electrical data, Cable section, maximum
    1.5 mm²
  • Electrical data, Cable section, minimum
    0.34 mm²
  • Electrical data, Max. fuse rating
    6 A gG D-fuse
  • Electrical data, Utilisation category
    DC-13
    AC-15
  • Force, Positive break force, minimum Force,
    40 N
  • Material, contacts, electrical
    Silver
  • Housing material
    Metal, zinc die-cast
  • Standard, standards
    EN IEC 60947-5-1
    EN IEC 60947-5-5
    EN ISO 13850
  • Note, General
    Recommended cable lengths for pull-wire Emergency-Stop switc
    As the thimbles are subject to deformation in case of wire p
    At 2 m ... 5 m distance intermediate wire supports are requi
  • PIM maintenance status
    Discharge "Online catalog"
  • PNV, standard, certificates
    CCC
    cULus
  • Type of switch function
    2 NC contact
  • Type of electric connection
    Screw terminals M20 x 1.5
  • Safety parameters, Mission time
    20 Year(s)
  • Safety parameter
    EN ISO 13849-1
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661616759
  • SAP, product group
    Initial
  • SAP, gross weight
    342.210 g
  • SAP, net weight
    342.210 g
  • Temperature, Ambient temperature[generated product variant]
    -30 ... +80 °C
  • Temperature, ambient temperature, maximum
    80 °C
  • Temperature, ambient temperature, minimum
    -30 °C
  • Voltage, Rated impulse withstand voltage
    4 kV
  • Voltage, rated insulation voltage
    250 VAC
  • Voltage, Utilisation category AC-15
    240 VAC
  • Voltage, Utilisation category DC-13
    24 VDC
  • Web Type
    Product range
  • Selection (Yes/No), Traceparts
    Yes
  • Material, enclosure coating
    painted
  • Selection (Yes/No), CADENAS
    Yes
  • Height, General
    93.4 mm
  • Width, General
    31 mm
  • Current, Required rated short-circuit current to EN 60947-5-1
    400 A
  • Type of Execution, Degree of pollution IEC/EN 60947-1
    3
  • Type of Execution, Housing construction form
    Norm construction design
  • Type of Execution, Overvoltage category IEC/EN 60664-1
    I
  • Height, Actuator,
    21.4 mm
  • Length, General
    32.4 mm
  • Width, Actuator
    91 mm
  • Web Produktneutheit (Datum bis)
    2023-12-31
  • Tightening torque, tightening torque, Electrical connection, maximum
    0.8 Nm
  • Torque, tightening torque, electrical connection, minimum
    0.6 Nm
  • Torque, tightening torque, screw, housing cover
    2.6 Nm
  • Torque, tightening torque, screw, mounting
    2 Nm
  • Type of Execution, Actuator type DIN EN 50047
    B

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Schmersal
