coloured key heads

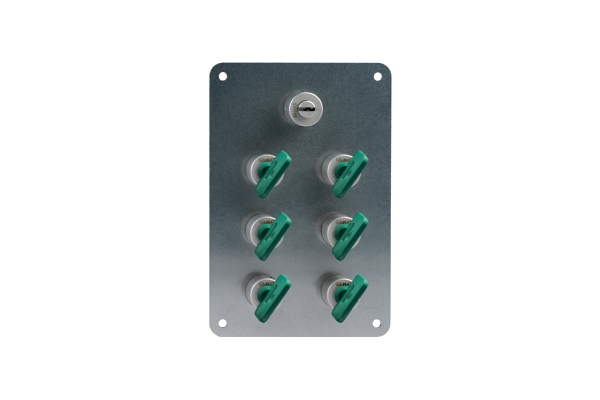

Key-operated selector switch interlocking device with 6 keys

Manufacturer code

zm4734674woxox9xewv37807xreykv
Housing color

Silver
Colour of the key

Silver
Colour, key head

Blue
Brown
Yellow
Grey
Red
White
Type of Execution, IP Protection class, General

IP40
Type of Execution, Mechanical life, minimum,

100000 Operations
Housing material

Stainless steel
Standard, standards

EN ISO 14119
EN ISO 13849-1
Note, General

See figure: Primary key in pos. 2: primary key not withdrawa
Note, Ordering data

Note: In the order/enquiry, the required key bit numbers "X"
PIM maintenance status

Discharge "Online catalog"
Safety parameters, Mission time

20 Year(s)
Included in delivery, number and type, general

SVM with 6 secondary key and 6 emergency keys, without prima
Temperature, Ambient temperature[generated product variant]

-25 ... +50 °C
Temperature, ambient temperature, maximum

50 °C
Temperature, ambient temperature, minimum

-25 °C
Web Type

Product range
Height, General

54.5 mm
Length, General

180 mm
Width, General

120 mm
Material, enclosure coating

painted
Number, Keys

6
Time, Switching frequency

5 /h
Coding, Key number, Primary Key

X
Coding, Key number, Secondary key

Y
Material, locking bolt

Brass
Recommendation, product combination

SHGV
SVE
Selection (Yes/No), Front plate mounting

Yes

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Schmersal
