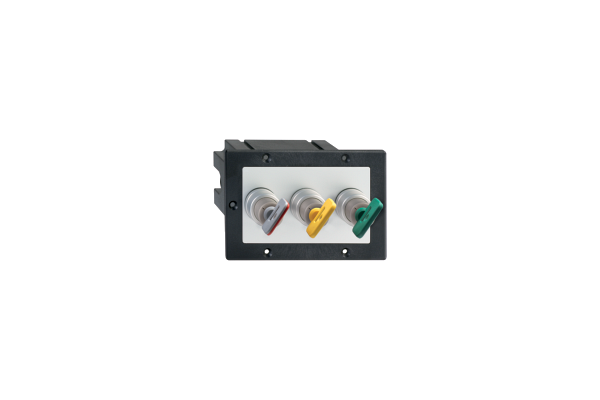

SVE3/SR/xxxoo/oo-230VAC Portable key safety system

SVE3/SR/xxxoo/oo-230VAC
coloured key heads
Thermoplastic enclosure
Protection class IP65
  • Manufacturer code
    b2s734666sqhn8x0lw156133xslo4j
  • Coding, Key number
    xxx
  • Housing color
    Black
    Silver
  • Colour of the key
    Silver
  • Colour, key head
    Blue
    Brown
    Yellow
    Grey
    Red
    White
  • Current, Thermal test current
    4 A
  • Current, Utilisation category AC-15
    4 A
  • Current, Utilisation category DC-13
    4 A
  • Type of Execution, IP Protection class, General
    IP65
    IP20
  • Type of Execution, Position, Key selector switch
    centered
    left
    right
  • Type of Execution, Mechanical life, minimum,
    100000 Operations
  • Switching principle
    Slow action
  • Height, Sensor
    171 mm
  • Length, Sensor
    144 mm
  • Width, Sensor
    96 mm
  • Electrical data, Cable section, maximum
    2.5 mm²
  • Electrical data, Cable section, minimum
    0.25 mm²
  • Electrical data, Max. fuse rating
    4 A gG D-fuse to DIN EN 60269-1
  • Electrical data, Utilisation category
    DC-13
    AC-15
  • Material, contacts, electrical
    Silver
  • Housing material
    Plastic, glass-fibre reinforced thermoplastic, self-extingui
  • Standard, standards
    EN IEC 60947-5-1
    EN IEC 60204-1
    EN IEC 60947-5-3
    EN IEC 62061
    EN ISO 14119
    EN IEC 60947-5-5
    EN IEC 60947-1
  • Note, Electrical Data, Cable section
    All indications including the conductor ferrules.
  • Note, General
    See figure: Operating principle: key 1-3 in pos. 1. Magnet d
  • Note, Ordering data
    Note: In the order/inquiry, the requested lock number "xxx"
  • Number, Auxiliary contacts
    4
  • Number, Key selector switches
    3
  • Number, Safety contacts
    2
  • PIM maintenance status
    Discharge "Online catalog"
  • Power, electrical consumption, maximum
    8.5 W
  • Type of switch function
    NO contact, NC contact
  • Electrical data, Terminal, Connector, Transmitter, General
    Screw terminals M20 x 1.5
  • Safety parameters, Mission time
    20 Year(s)
  • Safety parameter
    EN ISO 13849-1
  • Included in delivery, number and type, general
    Key and triangular tool included in delivery (incl. 1 key fo
  • Temperature, Ambient temperature[generated product variant]
    +0 ... +50 °C
  • Temperature, ambient temperature, maximum
    50 °C
  • Temperature, ambient temperature, minimum
    0 °C
  • Voltage, Rated impulse withstand voltage
    2.5 kV
  • Voltage, rated insulation voltage
    250 VAC
  • Voltage, Utilisation category AC-15
    230 VAC
  • Voltage, Utilisation category DC-13
    24 VDC
  • Web Type
    Product range
  • Selection (Yes/No), Manual release
    Yes
  • Selection (Yes/No), Power to unlock
    Yes
  • Voltage, Rated control voltage
    230 VAC

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Schmersal
