Use in applications without dangerous run-on movements resp. run-on movements less than the key transfer time
HS locking system-compatible versions possible

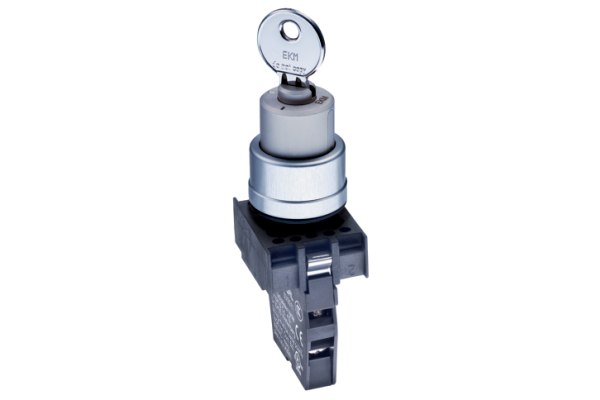

Key switch including mounting flange and contact element

SKU

4030661586168
Manufacturer code

101205809
Coding, Key number

111
Colour, key head

Silver
Current, Thermal test current

10 A
Current, Utilisation category AC-15

8 A
Current, Utilisation category DC-13

5 A
Type of Execution, IP Protection class, General

IP65
Type of Execution, Mechanical life, minimum,

100000 Operations
Switching principle

Slow action
Electrical data, Cable section, maximum

2.5 mm², rigid
2.5 mm², flexible
Electrical data, Cable section, minimum

0.5 mm², rigid
0.5 mm², flexible
Electrical data, Max. fuse rating

10 A gG D-fuse
Electrical data, Utilisation category

DC-13
AC-15
Material, contacts, electrical

Silver
Housing material

Plastic, glass-fibre reinforced thermoplastic, self-extingui
Standard, standards

EN IEC 60947-5-1
EN IEC 60204-1
EN IEC 60947-5-3
EN IEC 62061
EN ISO 14119
EN IEC 60947-5-5
EN IEC 60947-1
Note, Electrical Data, Cable section

All indications including the conductor ferrules.
Number, Auxiliary contacts

1
PIM maintenance status

Discharge "Online catalog"
Type of switch function

NC contact, NO contact
Electrical data, Terminal, Connector, Transmitter, General

Screw terminals M20 x 1.5
Temperature, Ambient temperature[generated product variant]

-25 ... +75 °C
Temperature, ambient temperature, maximum

75 °C
Temperature, ambient temperature, minimum

-25 °C
Voltage, rated insulation voltage

400 V
Voltage, Utilisation category AC-15

230 VAC
Voltage, Utilisation category DC-13

24 VDC
Web Type

Product range
PNV, standard, certificates

CCC
cULus
TÜV
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661586168
SAP, product group

Initial
SAP, gross weight

136.000 g
SAP, net weight

136.000 g
Selection (Yes/No), Traceparts

Yes
Material, cylinder lock

Steel
Review, restistance to shock

110 g / 4 ms
Contact element colour

Black
Colour of the cylinder lock

Silver
Colour of the front ring

Silver
Type of Execution, General

Key - Selector switch - Front plate mounting
Type of Execution, Terminals, mechanical

arbitrarily
Type of Execution, IP Protection class, Switch rooms

IP40
Type of Execution, IP Protection class, clips or terminals

IP20
Type of Execution, Key withdrawal position

Position I
90°
Type of Execution, Latching position

right
Type of execution, mounting

mounting flange
Design, Sealing

Form seals
Lip gaskets
Membrane
Diameter, Cylinder lock

22 mm
Diameter, Front ring

29.5 mm
Diameter, hole, mounting diameter

22.3 mm
Distance, Grid dimensions [mm]

40 x 50 mm
Thickness, Front panel, maximum

6 mm
Thickness, Front panel, minimum

1 mm
Electrical data, Suitable for low-voltages

≥ 5 V / ≥ 3.2 mA
Material, front ring

Aluminium
Number, plunger

1
Number, Switch positions

2
Review, general dimensions (length, width, height, etc.)

Height with key (and contact element): 60 mm (119 mm)
Time, Bounce duration, maximum

5 ms
Time, Switching frequency

5 /h
Tolerance, absolute

0.4
Tightening torque, tightening torque, screw

0.6 Nm
Tightening torque, torque, clips

1 Nm
Selection (Yes/No), Full insulation

Yes
Selection (Yes/No), latching

Yes
