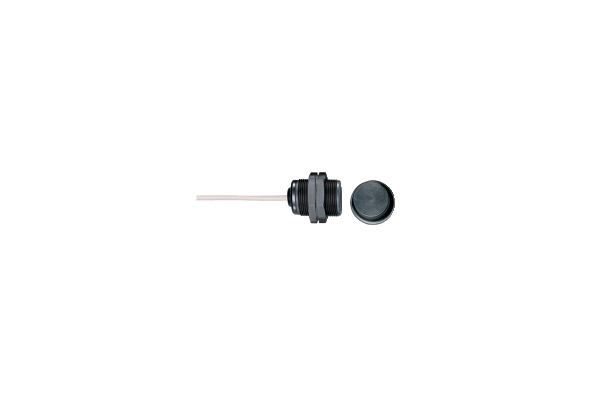

Thermoplastic enclosure
Long life
Suitable for food processing industry only in combination with BPS 303 SS
no mechanical wear
Ø M30
Insensitive to transverse misalignment
Insensitive to soiling

SKU

4030661383323
Manufacturer code

101209613
PIM maintenance status

Discharge "Online catalog"
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661383323
SAP, product group

Initial
SAP, gross weight

90.000 g
SAP, net weight

90.000 g
Coding, Coding level according to EN ISO 14119

Low
Current, Switching current, maximum

0.4 A
Type of execution, Actuating element

Magnet
Type of Execution, Terminals, mechanical

quasi-flush
Type of Execution, IP Protection class, General

IP67
Type of Execution, Switching output, Digital output, electric

Miscellaneous, Reed contacts
Diameter, Wire cross-section, AWG

23 AWG
Diameter, Wire cross-section,

0.25 mm<sup>2</sup>
Cable length

1 m
Length, Sensor

44 mm
Area, ensured switch distance OFF S_ar

15 mm
Area, ensured switch distance ON S_ao

5 mm
Material, cable mantle

PVC
Housing material

Glass-fibre, reinforced thermoplastic
Motion, Direction of motion

Head-on to the active surface
Standard, standards

EN IEC 60947-5-3
BG-GS-ET-14
Note, General

Contact symbols shown for the closed condition of the guard
The contact configuration for versions with or without LED i
Number, NC contacts

2
Number, NO contacts

1
PNV, standard, certificates

TÜV
Power, switching capacity, maximum

10 W
Recommendation, actuator

BPS 300
BPS 303
BPS 303 SS
Recommended, Safety switchgear

SRB 301AN
Review, Resistance to vibrations to EN 60068-2-6

10 … 55 Hz, amplitude 1 mm
Review, restistance to shock

30 g / 11 ms
Safety parameters, Mission time

20 Year(s)
Safety parameter

EN ISO 13849-1
Included in delivery, number and type, general

Actuator must be ordered separately.
Temperature, Ambient temperature[generated product variant]

-25 ... +70 °C
Temperature, ambient temperature, maximum

70 °C
Temperature, ambient temperature, minimum

-25 °C
Temperature, storage and transport temperature,[generated product variant]

-25 ... +70 °C
Temperature, storage and transport temperature, maximum

70 °C
Temperature, storage and transport temperature, minimum

-25 °C
Time, Switching frequency, maximum

5 Hz
Web Type

Product range
Selection (Yes/No), CADENAS

Yes
CAD, traceparts, product ID

33-22052019-077540
Number, Safety contacts

2
Number, cable wires, electrical

6
Diameter, Sensors, Metric ISO-Thread

M30
Diameter, width across flats, abbreviation

36 BK
Material, nut

Thermoplastic
Included in delivery, number and type, mounting material

2x Mounting material M30 x 1.5 nuts

Manufacturer Schmersal
