Connector M12, 4-pole
Thermoplastic enclosure
Suitable for food processing industry
Concealed mounting possible
52 mm x 90 mm x 32 mm
Long life
no mechanical wear
Insensitive to transverse misalignment
Insensitive to soiling

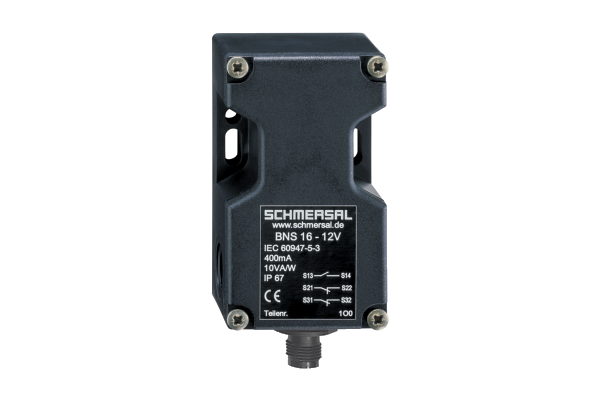

Coded reed contact safety switch

SKU

4030661352770
Manufacturer code

101192588
PIM maintenance status

Discharge "Online catalog"
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661352770
SAP, product group

Initial
SAP, gross weight

130.000 g
SAP, net weight

130.000 g
Coding, Coding level according to EN ISO 14119

Low
Current, Switching current, maximum

0.4 A
Type of Execution, Active area

front side
Type of execution, Actuating element

Magnet
Type of Execution, Terminals, mechanical

not flush
Type of Execution, IP Protection class, General

IP67
Type of Execution, Switching output, Digital output, electric

Miscellaneous, Reed contacts
Height, Sensor

90 mm
Length, Sensor

39 mm
Area, ensured switch distance OFF S_ar

18 mm
Area, ensured switch distance ON S_ao

8 mm
Width, Sensor

52 mm
Housing material

Glass-fibre, reinforced thermoplastic
Motion, Direction of motion

Head-on to the active surface
Standard, standards

EN IEC 60947-5-3
BG-GS-ET-14
Note, General

Contact symbols shown for the closed condition of the guard
Number, NC contacts

1
Number, NO contacts

1
PNV, standard, certificates

cULus
TÜV
BG
Power, switching capacity, maximum

10 W
Recommendation, actuator

BPS 16
Recommended, Safety switchgear

SRB-E-301ST
SRB-E-201LC
Type of electric connection

Connector M12
Review, Resistance to vibrations to EN 60068-2-6

10 … 55 Hz, amplitude 1 mm
Review, restistance to shock

30 g / 11 ms
Safety parameters, Mission time

20 Year(s)
Safety parameter

EN ISO 13849-1
Included in delivery, number and type, general

Actuator must be ordered separately.
Temperature, Ambient temperature[generated product variant]

-25 ... +70 °C
Temperature, ambient temperature, maximum

70 °C
Temperature, ambient temperature, minimum

-25 °C
Temperature, storage and transport temperature,[generated product variant]

-25 ... +70 °C
Temperature, storage and transport temperature, maximum

70 °C
Temperature, storage and transport temperature, minimum

-25 °C
Time, Switching frequency, maximum

5 Hz
Voltage, Switching voltage, VAC, maximum

100 VAC
Voltage, Switching voltage, VDC, maximum

100 VDC
Web Type

Product range
Review, selection (yes/no), Prerequisite evaluation unit

Yes
Design, Position, Connector

Centre

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Schmersal
