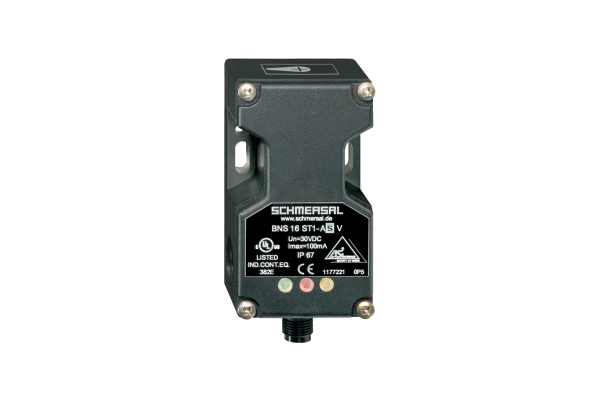

BNS 16 ST1-AS D Magnetic machine safety switch

BNS 16 ST1-AS D
connector plug M12, bottom, 4-pole
Safety sensor
Thermoplastic enclosure
no mechanical wear
40 mm x 90 mm x 39 mm
Integrated AS-Interface
Concealed mounting possible
Long life
Insensitive to transverse misalignment
Insensitive to soiling
AS-Interface LED and status display
  • SKU
    4030661308012
  • Manufacturer code
    101177222
  • PIM maintenance status
    Discharge "Online catalog"
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661308012
  • SAP, product group
    Initial
  • SAP, gross weight
    133.110 g
  • SAP, net weight
    133.110 g
  • Type of Execution, Active area
    cover-side
  • Type of execution, Actuating element
    Magnet
  • Type of Execution, Terminals, mechanical
    quasi-flush
  • Type of Execution, IP Protection class, General
    IP67
  • Height, Sensor
    90 mm
  • Length, Sensor
    38.5 mm
  • Area, ensured switch distance OFF Sar
    18 mm
  • Area, ensured switch distance ON Sao
    8 mm
  • Width, Sensor
    40 mm
  • Housing material
    Glass-fibre, reinforced thermoplastic
  • Motion, Direction of motion
    Head-on to the active surface
  • Standard, standards
    EN IEC 60947-5-3
    EN ISO 13849-1
    EN IEC 61508
    EN IEC 62026-2
  • PNV, standard, certificates
    cULus
    TÜV
    ASi-SaW
  • Recommendation, actuator
    BPS 16
  • Type of electric connection
    Connector plug M12, 4-pole, (A-coding)
  • Review, Resistance to vibrations to EN 60068-2-6
    10 … 55 Hz, amplitude 1 mm
  • Review, restistance to shock
    30 g / 11 ms
  • Safety parameters, Mission time
    20 Year(s)
  • Safety parameter
    EN IEC 61508
  • Included in delivery, number and type, general
    Actuator must be ordered separately.
  • Temperature, Ambient temperature[generated product variant]
    -25 ... +60 °C
  • Temperature, ambient temperature, maximum
    60 °C
  • Temperature, ambient temperature, minimum
    -25 °C
  • Temperature, storage and transport temperature,[generated product variant]
    -25 ... +70 °C
  • Temperature, storage and transport temperature, maximum
    70 °C
  • Temperature, storage and transport temperature, minimum
    -25 °C
  • Web Type
    Product range
  • CAD, traceparts, product ID
    69-15022006-935849
  • Selection (Yes/No), Integral System Diagnostics, status
    Yes
  • Current, consumption, AS-i, maximum
    50 mA
  • Type of Execution, for degree of pollution VDE 0100
    3
  • Type of Execution, Overvoltage category VDE 0100
    3
  • Type of Execution, Overvoltage category IEC/EN 60664-1
    II
  • Design, Position, Connector
    Bottom
  • Type of Execution, Protection class (Operating resource)
    2
  • Electrical Data, Inputs, AS-i, Channel 1
    Data bits DI 0 / DI 1 = dynamic code transmission
  • Electrical Data, Inputs, AS-i, Channel 2
    Data bits DI 2 / DI 3 = dynamic code transmission
  • Electrical Data, AS-i, Input module address
    0
  • Electrical data, AS-i, Parameter bits, P0 ... P3
    No function
  • Electrical data, AS-i, Profile
    S-0.B.F.E
  • Electrical Data, AS-i, Specification
    Safety-Slave
  • Electrical data, AS-i, Version
    V 2.1
  • Electrical data, Connector, AS-i, PIN 1
    AS-i +
  • Electrical data, Connector, AS-i, PIN 2
    n.c.
  • Electrical data, Connector, AS-i, PIN 3
    AS-Interface -
  • Electrical data, Connector, AS-i, PIN 4
    n.c.
  • Electrical Data, Device protection, AS-i
    Internal short-circuit proof
  • Electrical data, Outputs, AS-i, DO 0 … DO 3
    No Function
  • Note, Electrical data, AS-i, Input module address
    Preset to address 0, can be changed through AS-interface bus
  • Note, Electrical data, AS-i, Parameter bits
    Set the parameter outputs to "1111" (0xF)
    FID: periphery error
  • Note, LED switching conditions display
    (2) LED green/red (AS-i duo LED): Supply voltage / communica
    (1) LED yellow: Channel 1 / AS-i SaW Bit 0.1
    (3) LED yellow: Channel 2 / AS-i SaW Bit 2.3
  • Note, operating voltage, AS-i
    Protection against polarity reversal
  • Note, Safety Parameters, PFH-value
    up to max. 500,000 switching cycles/year
  • Note, rated operating voltage, ASi
    Protection against polarity reversal
  • Review, Coding, AS-i, ID-Code
    0xB
  • Review, Coding, AS-i, ID-Code1
    0xF
  • Review, Coding, AS-i, ID-Code2
    0xE
  • Review, Coding, AS-i, IO-Code
    0x0
  • Safety parameters, Category, EN ISO 13849
    4
  • Safety parameters, Performance Level,
    e
  • Safety values, PFD value
    0.00000000742 /h
  • Safety parameters, Safety Integrity Level (SIL)
    3
  • Time, Reaction, maximum
    100 ms
  • Voltage, Operating voltage, AS-i, maximum
    31.6 VDC
  • Voltage, Operating voltage, AS-i, minimum
    18.0 VDC
  • Voltage, Rated impulse withstand voltage
    0.8 kV
  • Voltage, rated insulation voltage
    32 VDC
  • Voltage, rated operating voltage, ASi, maximum
    31.6 VDC
  • Voltage, rated operating voltage, ASi, minimum
    18.0 VDC
  • Voltage, type, ASi
    DC
  • Selection (Yes/No), Coding
    Yes

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Schmersal
