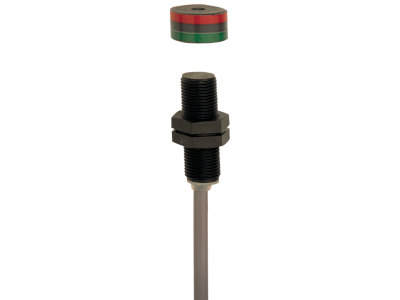

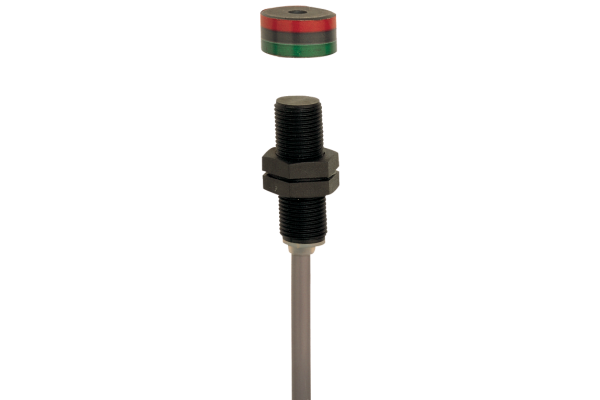

BNS 120-12Z 10,0M Magnetic machine safety switch

BNS 120-12Z 10,0M
Thermoplastic enclosure
Suitable for food processing industry only in combination with BP 15 SS
Particularly large switching distance
Ø M12
Long life
no mechanical wear
Insensitive to transverse misalignment
Insensitive to soiling
uncoded, concealed installation according to ISO 14119
  • SKU
    4030661188959
  • Manufacturer code
    101160113
  • PIM maintenance status
    Discharge "Online catalog"
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661188959
  • SAP, product group
    Initial
  • SAP, gross weight
    355.000 g
  • SAP, net weight
    355.000 g
  • Coding, Coding level according to EN ISO 14119
    None
  • Current, Switching current, maximum
    0.25 A
  • Type of execution, Actuating element
    Magnet
  • Type of Execution, Terminals, mechanical
    quasi-flush
  • Type of Execution, IP Protection class, General
    IP67
  • Diameter, Wire cross-section, AWG
    23 AWG
  • Diameter, Wire cross-section,
    0.25 mm<sup>2</sup>
  • Cable length
    10 m
  • Length, Sensor
    38.5 mm
  • Area, ensured switch distance OFF Sar
    22 mm
    32 mm
  • Area, ensured switch distance ON Sao
    10 mm
    20 mm
  • Material, cable mantle
    PVC
  • Housing material
    Glass-fibre, reinforced thermoplastic
  • Motion, Direction of motion
    Head-on to the active surface
  • Standard, standards
    EN IEC 60947-5-3
    BG-GS-ET-14
  • Note, General
    Contact symbols shown for the closed condition of the guard
    The safety sensor must be mounted in such a way that actuati
  • Number, NC contacts
    2
  • Number, NO contacts
    1
  • PNV, standard, certificates
    cULus
    TÜV
    BG
  • Power, switching capacity, maximum
    3 W
  • Recommendation, actuator
    BP 10
    BP 8
    BP 6
    BP 15 SS
  • Recommended, Safety switchgear
    SRB-E-301ST
    SRB-E-201LC
  • Type of electric connection
    Cable
  • Review, Resistance to vibrations to EN 60068-2-6
    10 … 55 Hz, amplitude 1 mm
  • Review, restistance to shock
    30 g / 11 ms
  • Safety parameters, Mission time
    20 Year(s)
  • Safety parameter
    EN ISO 13849-1
  • Included in delivery, number and type, general
    Actuator must be ordered separately.
  • Temperature, Ambient temperature[generated product variant]
    -25 ... +70 °C
  • Temperature, ambient temperature, maximum
    70 °C
  • Temperature, ambient temperature, minimum
    -25 °C
  • Temperature, storage and transport temperature,[generated product variant]
    -25 ... +70 °C
  • Temperature, storage and transport temperature, maximum
    70 °C
  • Temperature, storage and transport temperature, minimum
    -25 °C
  • Time, Switching frequency, maximum
    5 Hz
  • Web Type
    Product range
  • Selection (Yes/No), CADENAS
    Yes
  • CAD, traceparts, product ID
    33-22052019-077534
  • Number, Safety contacts
    2
  • Number, cable wires, electrical
    4
  • Diameter, Sensors, Metric ISO-Thread
    M12
  • Review, distance, actuator switch distance
    Actuating magnet BP 8, Sao: 10 mm
    Actuating magnet BP 15 SS, Sao: 20 mm
    Actuating magnet BP 10, Sao: 20 mm
    Actuating magnet BP 6, Sao: 10 mm
    Actuating magnet BP 8, Sar: 22 mm
    Actuating magnet BP 15 SS, Sar: 32 mm
    Actuating magnet BP 6, Sar: 22 mm
    Actuating magnet BP 10, Sar: 32 mm

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Schmersal
