Thermoplastic enclosure
small body
Concealed mounting possible
33 mm x 25 mm x 13 mm
Long life
no mechanical wear
Insensitive to transverse misalignment
Insensitive to soiling

SKU

4030661151618
Manufacturer code

101149419
PIM maintenance status

Discharge "Online catalog"
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661151618
SAP, product group

Initial
SAP, gross weight

220.000 g
SAP, net weight

220.000 g
Coding, Coding level according to EN ISO 14119

Low
Current, Switching current, maximum

0.01 A
Type of Execution, Active area

front side
Type of execution, Actuating element

Magnet
Type of Execution, Terminals, mechanical

not flush
Type of Execution, IP Protection class, General

IP67
Type of Execution, Switching output, Digital output, electric

Miscellaneous, Reed contacts
Diameter, Wire cross-section, AWG

23 AWG
Diameter, Wire cross-section,

0.25 mm<sup>2</sup>
Height, Sensor

25 mm
Cable length

6 m
Length, Sensor

13 mm
Area, ensured switch distance OFF S_ar

14 mm
Area, ensured switch distance ON S_ao

4 mm
Width, Sensor

33 mm
Material, cable mantle

PVC
Housing material

Glass-fibre, reinforced thermoplastic
Motion, Direction of motion

Head-on to the active surface
Standard, standards

EN IEC 60947-5-3
BG-GS-ET-14
Note, General

Contact symbols shown for the closed condition of the guard
The contact configuration for versions with or without LED i
Number, NC contacts

1
Number, NO contacts

1
PNV, standard, certificates

cULus
TÜV
BG
Power, switching capacity, maximum

0.24 W

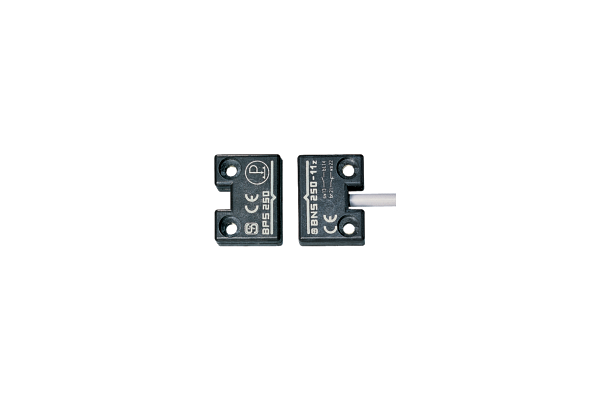

Recommendation, actuator

BPS 250
Recommended, Safety switchgear

SRB-E-301ST
SRB-E-201LC
Type of electric connection

Cable
Review, Resistance to vibrations to EN 60068-2-6

10 … 150 Hz, amplitude 0.35 mm
Review, restistance to shock

30 g / 11 ms
Safety parameters, Mission time

20 Year(s)
Safety parameter

EN ISO 13849-1
Included in delivery, number and type, general

Actuator must be ordered separately.
Temperature, Ambient temperature[generated product variant]

-25 ... +70 °C
Temperature, ambient temperature, maximum

70 °C
Temperature, ambient temperature, minimum

-25 °C
Temperature, storage and transport temperature,[generated product variant]

-25 ... +70 °C
Temperature, storage and transport temperature, maximum

70 °C
Temperature, storage and transport temperature, minimum

-25 °C
Time, Switching frequency, maximum

5 Hz
Voltage, Switching voltage, VDC, maximum

24 VDC
Web Type

Product range
Selection (Yes/No), CADENAS

Yes
Review, selection (yes/no), Prerequisite evaluation unit

Yes
CAD, traceparts, product ID

33-22052019-077524
Note, Integral System Diagnostics, Status

The LED is illuminated when the guard door is open.
Selection (Yes/No), Integral System Diagnostics, status

Yes
Number, cable wires, electrical

4

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Schmersal
