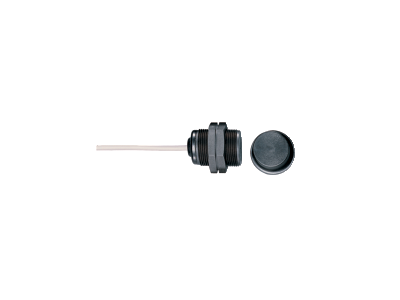

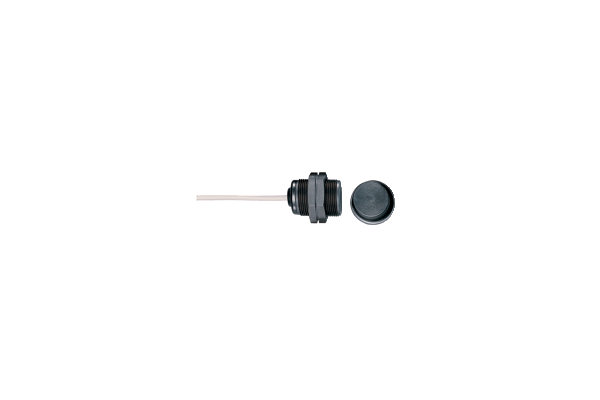

BNS 303-12Z 3,0M Magnetic machine safety switch

BNS 303-12Z 3,0M
Thermoplastic enclosure
Long life
Suitable for food processing industry only in combination with BPS 303 SS
no mechanical wear
Ø M30
Insensitive to transverse misalignment
Insensitive to soiling
  • SKU
    4030661049007
  • Manufacturer code
    101137945
  • PIM maintenance status
    Discharge "Online catalog"
  • SAP, basic quantity unit
    Piece
  • SAP, EAN (European Article Number)
    4030661049007
  • SAP, product group
    Initial
  • SAP, gross weight
    125.000 g
  • SAP, net weight
    125.000 g
  • Coding, Coding level according to EN ISO 14119
    Low
  • Current, Switching current, maximum
    0.4 A
  • Type of execution, Actuating element
    Magnet
  • Type of Execution, Terminals, mechanical
    quasi-flush
  • Type of Execution, IP Protection class, General
    IP67
  • Type of Execution, Switching output, Digital output, electric
    Miscellaneous, Reed contacts
  • Diameter, Wire cross-section, AWG
    23 AWG
  • Diameter, Wire cross-section,
    0.25 mm<sup>2</sup>
  • Cable length
    3 m
  • Length, Sensor
    44 mm
  • Area, ensured switch distance OFF Sar
    15 mm
  • Area, ensured switch distance ON Sao
    5 mm
  • Material, cable mantle
    PVC
  • Housing material
    Glass-fibre, reinforced thermoplastic
  • Motion, Direction of motion
    Head-on to the active surface
  • Standard, standards
    EN IEC 60947-5-3
    BG-GS-ET-14
  • Note, General
    Contact symbols shown for the closed condition of the guard
    The contact configuration for versions with or without LED i
  • Number, NC contacts
    2
  • Number, NO contacts
    1
  • PNV, standard, certificates
    cULus
    TÜV
    BG
  • Power, switching capacity, maximum
    10 W
  • Recommendation, actuator
    BPS 300
    BPS 303
    BPS 303 SS
  • Recommended, Safety switchgear
    SRB-E-301ST
    SRB-E-201LC
  • Type of electric connection
    Cable
  • Review, Resistance to vibrations to EN 60068-2-6
    10 … 55 Hz, amplitude 1 mm
  • Review, restistance to shock
    30 g / 11 ms
  • Safety parameters, Mission time
    20 Year(s)
  • Safety parameter
    EN ISO 13849-1
  • Included in delivery, number and type, general
    Actuator must be ordered separately.
  • Temperature, Ambient temperature[generated product variant]
    -25 ... +70 °C
  • Temperature, ambient temperature, maximum
    70 °C
  • Temperature, ambient temperature, minimum
    -25 °C
  • Temperature, storage and transport temperature,[generated product variant]
    -25 ... +70 °C
  • Temperature, storage and transport temperature, maximum
    70 °C
  • Temperature, storage and transport temperature, minimum
    -25 °C
  • Time, Switching frequency, maximum
    5 Hz
  • Voltage, Switching voltage, VAC, maximum
    100 VAC
  • Voltage, Switching voltage, VDC, maximum
    100 VDC
  • Web Type
    Product range
  • CAD, traceparts, product ID
    33-22052019-077540
  • Number, cable wires, electrical
    4
  • Diameter, Sensors, Metric ISO-Thread
    M30
  • Diameter, width across flats, abbreviation
    36 BK
  • Material, nut
    Thermoplastic
  • Included in delivery, number and type, mounting material
    2x Mounting material M30 x 1.5 nuts
  • Tightening torque, torque, nuts, maximum
    3 Nm

  • This product is unavailable

    This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.

  • Manufacturer Schmersal
