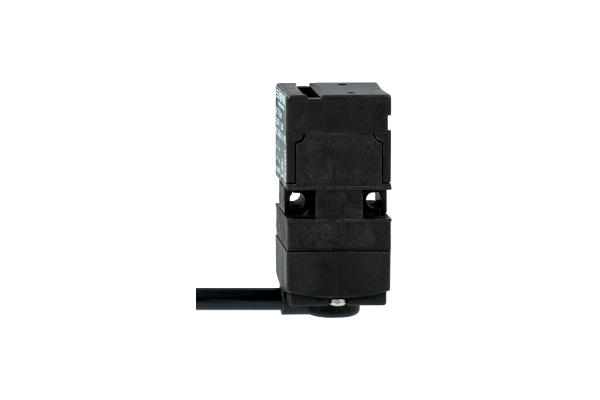

Rear cable entry
Can be retro-fitted
30 mm x 60 mm x 30 mm
Thermoplastic enclosure
Double-insulated
Long life
small body
Universal coding
High level of contact reliability with low voltages and currents
Insensitive to soiling
8 actuating planes

SKU

4030661321004
Manufacturer code

101184150
Current, Thermal test current

10 A
Type of Execution, IP Protection class, General

IP67
Type of Execution, Mechanical life, minimum,

1000000 Operations

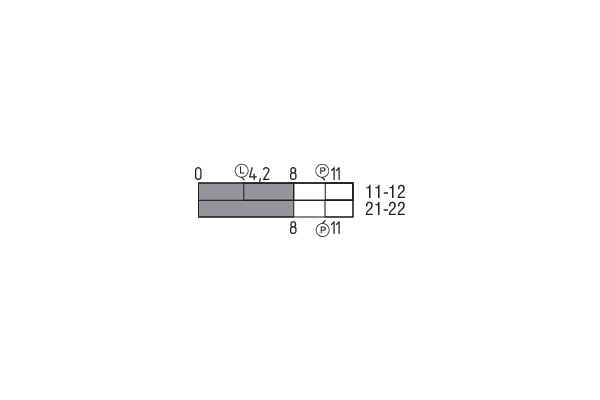

Switching principle

slow action, positive break NC contact
Height, Sensor

65 mm
Length, Sensor

30 mm
Path, positive break travel

11 mm
Width, Sensor

30 mm
Electrical data, Max. fuse rating

6 A gG D-fuse
Material, contacts, electrical

Silver
Housing material

Plastic, glass-fibre reinforced thermoplastic, self-extingui
Standard, standards

EN IEC 60947-5-1
EN ISO 14119
EN ISO 13849-1
Number, Safety contacts

2
PIM maintenance status

Discharge "Online catalog"
PNV, standard, certificates

CCC
BG
Type of switch function

Opener (NC)
Electrical data, Terminal, Connector, Transmitter, General

Cable
Safety parameters, Mission time

20 Year(s)
Safety parameter

EN ISO 13849-1
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661321004
SAP, product group

Initial
SAP, gross weight

65.000 g
SAP, net weight

65.000 g
Included in delivery, number and type, general

Actuator must be ordered separately.
Slot cover for dust-proof covering of the opening not in use
Slot sealing plugs
Temperature, Ambient temperature[generated product variant]

-30 ... +80 °C
Temperature, ambient temperature, maximum

80 °C
Temperature, ambient temperature, minimum

-30 °C
Voltage, Rated impulse withstand voltage

4 kV
Voltage, rated insulation voltage

250 VAC
Web Type

Product range
Coding, Coding level according to EN ISO 14119

Low
Current, Utilisation category AC-15, Safety contacts

4 A
Current, Utilisation category DC-13, Safety contact

4 A
Movement, actuating speed, maximum

2 m/s
Current, Utilisation category AC-15, Safety contact VAC}

230 VAC
Current, Utilisation category DC-13, Safety contact VDC}

24 VDC
Current, Required rated short-circuit current to EN 60947-5-1

1000 A
Type of electric connection

rear
Type of Execution, Degree of pollution IEC/EN 60664-1

3
Type of execution, mounting

Screws
Type of execution, mounting, Screws

2x M5
Type of Execution, Overvoltage category IEC/EN 60664-1

III
Height, permissible installation height above sea level, maximum

2000 m
Force, Latching force

5 N
Force, Positive break force per NC contact, minimum Force,

17 N
Note, General

Individual coding available on request
Note, Safety parameters, Fault exclusion

Can be used when fault exclusion for dangerous damage to the
Note, applications

sliding safety guard
removable guard
hinged safety guard
Number, Actuating directions

2
Number, cable glands

1
Safety parameters, B10d, Normally-closed contact (NC),

2000000 Operations
Safety parameters, Category, EN ISO 13849

1
Safety parameters, Category, EN ISO 13849, Fault exclusion

3
Safety parameters, Mission time, Fault exclusion

20 Year(s)
Safety parameters, Performance Level,

c
Safety parameters, Performance Level, Fault exclusion

d
Temperature, storage and transport temperature,[generated product variant]

-30 ... +85 °C
Temperature, storage and transport temperature, maximum

85 °C
Temperature, storage and transport temperature, minimum

-30 °C
Time, Switching frequency

2000 /h
Selection (Yes/No), higher Latching force

No
CAD, traceparts, product ID

33-22052019-077185
Diameter, Wire cross-section,

0.75 mm<sup>2</sup>
Cable length

0.1 m
Number, cable wires, indication with cable cross-section, electrical

4

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Schmersal
