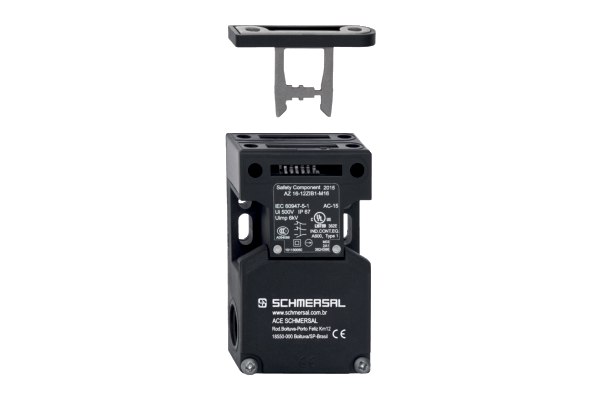

3 cable entries M 16 x 1.5
Thermoplastic enclosure
Individual coding
Coding level "High" according to ISO 14119

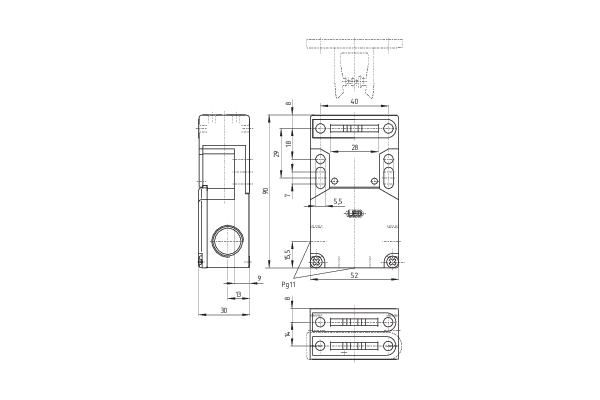

52 mm x 90 mm x 30 mm
Long life
Double-insulated
Large wiring compartment
High level of contact reliability with low voltages and currents
Insensitive to soiling
Slotted holes for adjustment, circular holes for location
For protection against the ingress of course dirt

SKU

4030661154510
Manufacturer code

101150057
Current, Thermal test current

10 A
Type of Execution, IP Protection class, General

IP67
Type of Execution, Mechanical life, minimum,

1000000 Operations

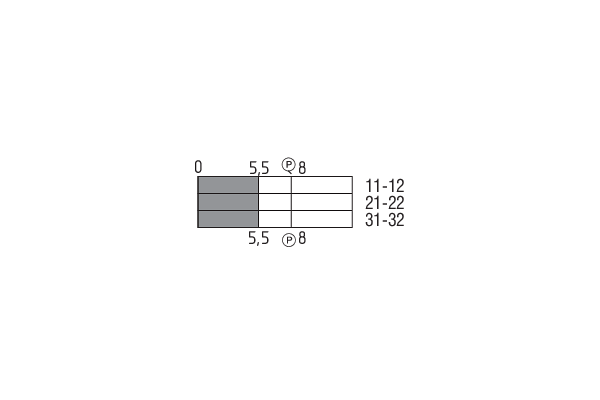

Switching principle

slow action, positive break NC contact
Height, Sensor

90 mm
Length, Sensor

30 mm
Path, positive break travel

8 mm
Width, Sensor

52 mm
Electrical data, Cable section, maximum

2.5 mm²
Electrical data, Cable section, minimum

0.75 mm²
Electrical data, Max. fuse rating

6 A gG D-fuse
Force, Positive break force, minimum Force,

30 N
Material, contacts, electrical

Silver
Housing material

Plastic, glass-fibre reinforced thermoplastic, self-extingui
Standard, standards

EN IEC 60947-5-1
EN ISO 14119
EN ISO 13849-1
Note, Electrical Data, Cable section

All indications including the conductor ferrules.
PIM maintenance status

Discharge "Online catalog"
PNV, standard, certificates

TÜV
Type of switch function

Opener (NC)
Electrical data, Terminal, Connector, Transmitter, General

Screw terminals
Safety parameters, Mission time

20 Year(s)
Safety parameter

EN IEC 60947-5-1
SAP, basic quantity unit

Piece
SAP, EAN (European Article Number)

4030661154510
SAP, product group

HAWA: Electromechanical switchgear
SAP, gross weight

174.000 g
SAP, net weight

174.000 g
Included in delivery, number and type, general

Slot sealing plugs
Temperature, Ambient temperature[generated product variant]

-30 ... +80 °C
Temperature, ambient temperature, maximum

80 °C
Temperature, ambient temperature, minimum

-30 °C
Voltage, Rated impulse withstand voltage

6 kV
Voltage, rated insulation voltage

500 V
Web Type

Product range
Coding, Coding level according to EN ISO 14119

High
Current, Utilisation category AC-15, Safety contacts

4 A
Current, Utilisation category DC-13, Safety contact

4 A
Movement, actuating speed, maximum

2 m/s
Current, Utilisation category AC-15, Safety contact VAC}

230 VAC
Current, Utilisation category DC-13, Safety contact VDC}

24 VDC
Selection (Yes/No), Ejection force

Yes
Current, Required rated short-circuit current to EN 60947-5-1

1000 A
Type of electric connection

3 x M16 x 1,5
Type of Execution, Degree of pollution IEC/EN 60664-1

3
Type of execution, mounting

Screws
Type of execution, mounting, Screws

2x M6
Type of Execution, Overvoltage category IEC/EN 60664-1

III
Height, permissible installation height above sea level, maximum

2000 m
Electrical data, Connector, allowed type of cable

flexible
solid single-wire
solid multi-wire
Force, Positive break force per NC contact, minimum Force,

10 N
Note, General

The actuator is not available separately.
The axis of the hinge must be 11 mm above and in a parallel
Minimum actuating radius on hinged guards 250 mm
Note, Safety parameters, Fault exclusion

Can be used when fault exclusion for dangerous damage to the
Number, cable glands

3
Safety parameters, B10d, Normally-closed contact (NC),

2000000 Operations
Safety parameters, Category, EN ISO 13849

1
Safety parameters, Category, EN ISO 13849, Fault exclusion

3
Safety parameters, Mission time, Fault exclusion

20 Year(s)
Safety parameters, Performance Level,

c
Safety parameters, Performance Level, Fault exclusion

d
Temperature, storage and transport temperature,[generated product variant]

-40 ... +85 °C
Temperature, storage and transport temperature, maximum

85 °C
Temperature, storage and transport temperature, minimum

-40 °C
Time, Switching frequency

4000 /h
Selection (Yes/No), Traceparts

Yes

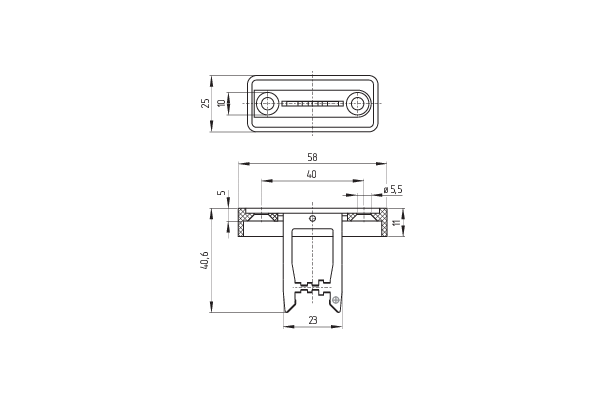

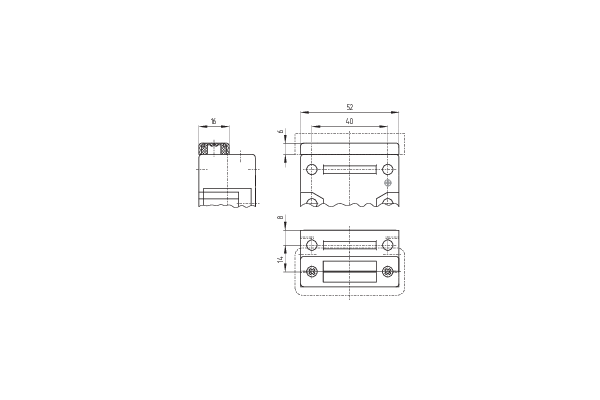

Material, actuator

Stainless steel
Type of Execution, Actuator

straight
rigid
Radius, Actuating radius, minimum

250 mm
Selection (Yes/No), CADENAS

Yes
CAD, traceparts, product ID

33-22052019-083006

This product is unavailable

This product is currently unavaliable, this could be due to a limited stock shortage, or because of discontinuation or replacement. For more information please contact us at b2b@tipteh.si.
Manufacturer Schmersal
